Yamaha

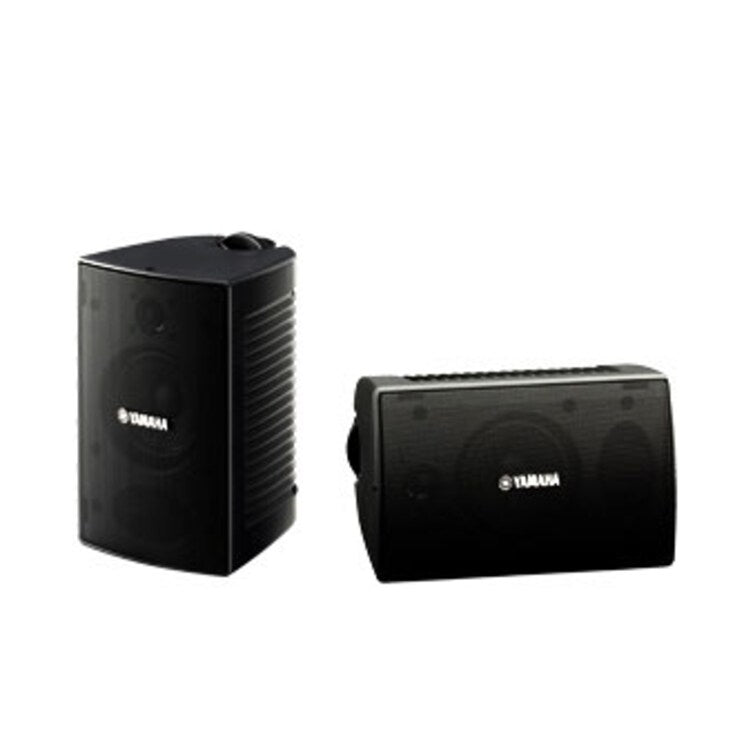

Yamaha Outdoor Speakers
High performance outdoor speakers with outstanding sound quality and weatherproofing. The simple design allows them to be installed in many types of locations.
- Yamaha’s advanced speaker design combines superior sound quality with excellent weatherproofing
- Powerful woofer delivers accurate mid/low frequency response
- Balanced dome tweeter ensures clear high frequency response
- Excellent audio performance, weatherproof cabinets that are drip, water and UV resistant
| Model | NS-AW194 | NS-AW294 | NS-AW392 | NS-AW592 |
| Type | 2-Way Bass-Reflex | 2-Way Bass-Reflex | 2-Way Accoustic Suspension | |
| Woofers | 4" Waterproof Cone | 6" Waterproof Cone | 13cm Waterproof Cone | 6.5" Waterproof Cone |
| Tweeter | 1" Fluid-Cooled, coated balanced dome | 1" Fluid-Cooled, coated balanced dome | 1.9cm fluid-cooled, coated soft dome | 1" fluid-cooled, coated soft dome |
| Frequency Response | 100Hz-20kHz | 80Hz-2-kHz | 60Hz-25kHz | 55Hz-20kHz |
| Nominal Input Power | 30W | 50W | 40W | 50W |
| Maximum Input Power | 80W | 100W | 120W | 150W |
| Sensitivity (2.83 V/1m) | 85dB | 87dB | 86dB | 88dB |
| Impedance | 8 Ohms | 8 Ohms | 6 Ohms | 6 Ohns |
| Dimensions | 6" x 9 5/8" x 6 3/4" | 7 1/2" x 12 1/8" x 8 1/2" | 170mm x 273mm x 136mm | 8 1/8" x 13 3/8" x 6 3/4" |
| Weight | 2.9lbs / unit | 4.4lbs / unit | 1.8kg / unit | 5.3lbs / unit |
