TEAC

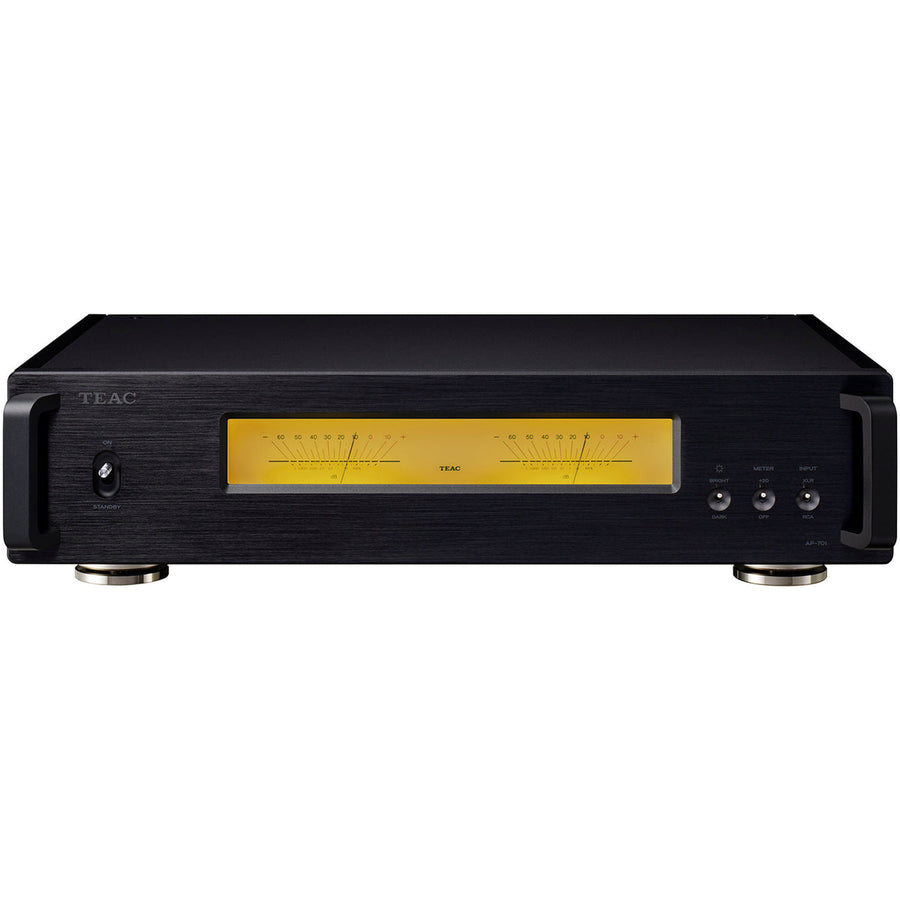

TEAC AP-701 Stereo Power Amplifier
Special Order
Dual mono power amplifier with fully balanced structure and two custom made Hypex Electronics Ncore power amplifier modules.
The unconstrained dynamism of sound awakens fundamental instincts. The AP-701 merges all the elements desired in a power amplifier at a high level, creating a new standard.
Independent left/right high-capacity toroidal core power supply transformers, discrete buffer amplifiers and two Ncore modules provide a complete dual mono structure from input to output. Moreover, the input stage of each channel has a fully-balanced design, so the dynamism of input signals is amplified as is, maximizing the innate performance of the speakers.
The cabinet is primarily comprised of 3mm-thick heavy metal plate but has a flexible structure to control vibration. By incorporating joints with suspension functions, the vibration frequency of the entire device is controlled to reproduce open and vibrant sound.
With two toroidal core power supply transformers and two Ncore modules, the extravagant circuitry has a complete dual mono structure from input to output. A dual mono structure, in which the channels are each completely mono, prevents interference between the left and right signals and achieves outstanding channel separation. This enables rich audio reproduction that provides a larger sound stage and more three dimensional sound.
- Trigger input for power synchronization with other devices
- Large VU meters
- Meter dimmer switching
- Meter gain switching
- Stereo/bi-amp switching
- Two Ncore power modules made by Hypex Electronics B.V. And tuned especially for this model
- High output with a practical maximum of 260 W + 260 W (4Ω) / 170 W + 170 W (8Ω)
- Dual mono design throughout entire system
- Clean signal amplification realized with a fully balanced design at the input stage
- Two independent left/right high-capacity toroidal core power supply transformers
- Discrete buffer amplifiers used in the input stage
- Three supporting pinpoint feet that are easy to install& (patent numbers 4075477 and 3778108)
- Two linked VU meters which show musical pulse, with four dimmer levels and two sensitivity settings
- Fan-free design to minimize noise
- 12V trigger in and through for power synchronization
Price includes shipping to most areas of Canada
