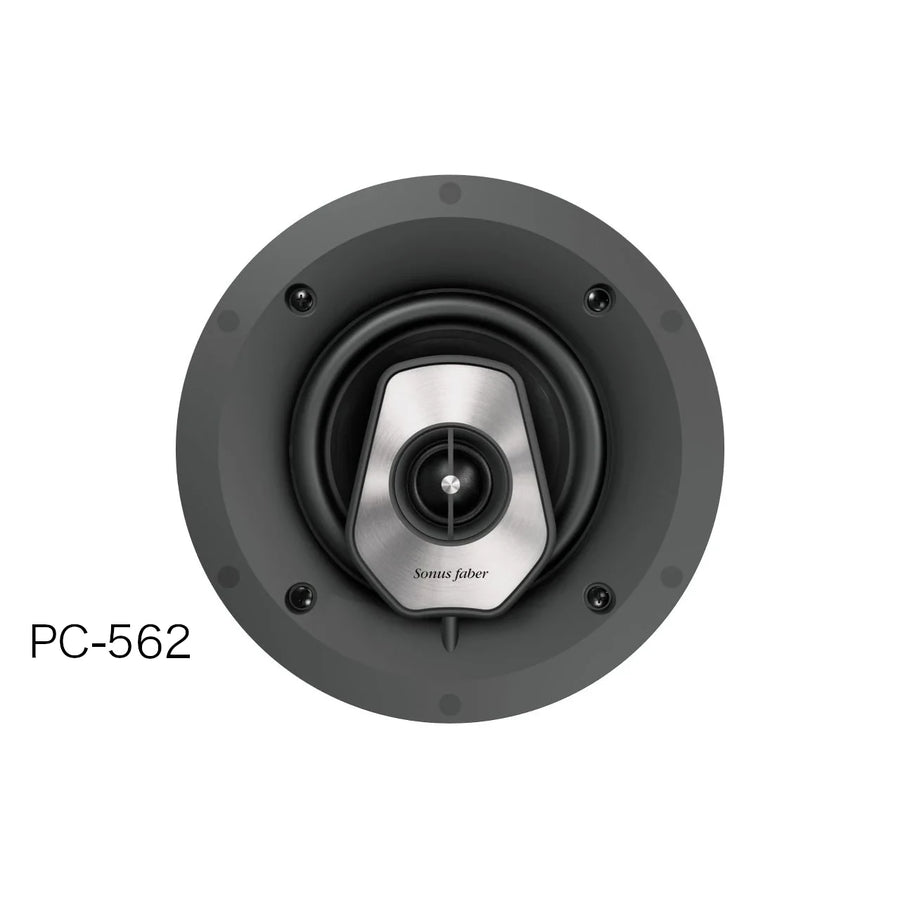

Sonus Faber Palladio Level 5 In-Ceiling Speakers (Each)
Sonus Faber Custom Install
A RENAISSANCE OF SOUND
The Palladio Collection is a visual and auditory tribute to Andrea Palladio, one of the most renowned architects of the Italian Renaissance.
Many of his masterpieces still stand in the Italian town of Vicenza, where Sonus faber is based. The Palladio collection fuses history, art, tradition, and elegant artisanship with cutting-edge audio technology.
BEYOND THE BOUNDARIES
Created in response to the scarcity of premium craftsmanship in contemporary custom installation speakers, the Palladio Collection extends Sonus faber's sonic signature into diverse environments, transcending the confines of conventional listening spaces.
ELEGANCE AND VERSATILITY
The 13 different models of the Palladio Collection are designed to meet a range of listening needs in home theater and multi-room configurations. The Collection’s versatility in both design and sound configuration offers an ideal solution for an array of listening spaces.
Sound Pointing
Whenever front speakers cannot be placed on walls, this model is made to be mounted in the ceiling. By positioning drivers to be angled to the surface, the sound emission aims to the direction of the listening position.
Quick Installation
Thanks to the swing out dogs fixing system, all Palladio speakers can be secured quickly and effectively to plasterboard.
Tweeter
DAD (Damped Apex Dome) silk dome tweeter.
Mid-Woofer
The custom diaphragm is made in natural fiber and cellulose pulp, according to the most natural sound.
Paracross Topology
The anti-resonant design of the x-over network features the Paracross Topology circuitry, to guarantee a better definition and purity of sound.
Price is for a single speaker and includes shipping to most areas of Canada
| Model | PC 562 | PC-562P | PC-563P | PC-582 |
| System | Two-way In-Ceiling System, Infinite Baffle | Two-way Point In-Ceiling System, Infinite Baffle | Two-way Point In-Ceiling System, Infinite Baffle | Two-way In-Ceiling System, Infinite Baffle |
| Drivers |
|
|
|
|
| Crossover (Paracross Technology) | 3000Hz | 3000Hz | 1650Hz | 3000Hz |
| Frequency Response | 50Hz-25kHz | 50Hz-25kHz | 45Hz-25kHz | 45Hz-25kHz |
| Sensitivity (2.83 Vrms @ 1m) | 90dB | 90dB | 92dB | 90dB |
| Nominal Impedance | 4 Ohms | 4 Ohms | 4 Ohms | 4 Ohns |
| Coverage Angle (1kHz, @ -6dB) |
|
|
|
|
| Suggest Amplifier | 40-200W Without Clipping | 40-200W Without Clipping | 40-250W Without Clipping | 40-200W Without Clipping |
| Frame Outer | 9.2" (234mm) | 10.4" (265.2mm) | 18.1" x 15.1" (460mm x 386mm) | 11.1" (283mm) |
| Cut Out | 8.19" (208mm) | 9.6" (244mm) | 17" x 14.1" (433mm x 359mm) | 10.1" (257mm) |
| Depth Behind Surface | 4.52" (115mm) | 6.7" (170mm) | 5.82" (148mm) | 5.5" (139mm) |
| Protrusion | 0.40" (10mm) | 0.40" (10mm) | 0.51" (13mm) | 0.51" (13mm) |
| Net Weight | 6.8lbs (3.1kg) | 7lbs (3.2kg) | 14.3lbs (6.5kg) | 7.5lbs (3.4kg) |
| Included | Bezel-Free Round Magnetic Grille | Bezel-Free Round Magnetic Grille | Bezel-Free Square Magnetic Grille | Bezel-Free Round Magnetic Grille |
| Additional Fittings |
|
|
None |
|
