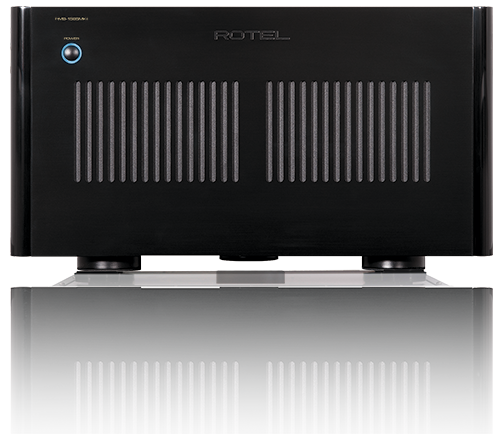

Rotel RMB-1585 MKII - 5 Channel - 210W/Ch
Rotel
Experience audiophile-level quality and performance with the Rotel RMB-1585 MKII 5-channel amplifier. This Class AB amplifier delivers 210 Watts per channel into 8 ohms and 340 Watts per channel into 4 ohms when all channels are driven simultaneously. Enjoy powerful sound and superb fidelity with Rotel's latest multi-channel offering.
| Rated Output Power (20Hz - 20kHz, Rated THD) |
|
| Amplifier Class | AB / Dual Toroidal Transformers |
| THD (20Hz - 20kHz) |
<0.03% |
| Damping Factor | 223 (1kHz, 8 Ohms) |
| Input Impedance (Unbalanced) |
12k Ohms |
| Input Impedance (Balanced) | 50k Ohms |
| Input Sensitivity (Unbalanced) |
1.89 Volt |
| Input Sensitivity (Balanced) | 4.7 Volt |
| Frequency Response | 10Hz-100kHz (+0.1dB, -0.3dB) |
| Signal-to-Noise Ratio | 120dB |
| Gain |
26.9dB |
| Dimensions (WxHxD) | 17" (431mm) x 9 1/3" (237mm) x 18" (456mm) |
| Front Panel Height | 8 3/4" (221m), 5U |
| Weight | 82 lbs (37.4kg) |
