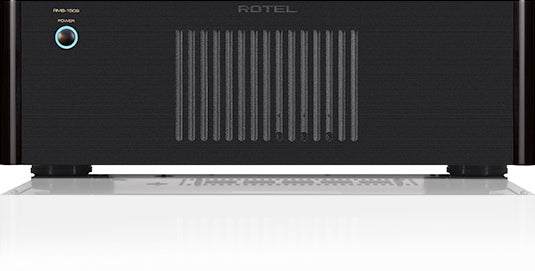

Rotel RMB-1506 6 Ch. Distribution Amplifier
Rotel
RMB-1506 6 Ch. Distribution Amplifier
Special Order
This amplifier is perfect for less elaborate multizone audio systems and can be mated with any of Rotel's surround receivers or Rotel's preamp/processor to add music throughout three additional living areas or "zones" of your home. You can also add another RMB-1506 or RMB-1504 for larger multizone applications. As with all Rotel multichannel amplifiers it includes all of the most wanted custom installation features.
| Continuous Power Output - 8 Ohms |
6 x 50 W/Ch (20Hz-20kHz, <0.03% THD) |
| Continuous Power Output - 4 Ohms | 6 x 80 W/Ch (1kHz, 1.0% THD) |
| Amplifier Class | AB |
| Total Harmonic Distortion | < 0.03% (20Hz-20kHz, 8 Ohms) |
| Damping Factor | >200 (20Hz-20kHz, 8 Ohms) |
| Input Impedance | 20 kOhms |
| Input Sensitivity | 1.0 Volt |
| Frequency Response | 10Hz-100kHz (+/- 1dB) |
| Signal-to-Noise Ratio | 115dB |
| Speaker Impedance | 4 Ohms Minimum |
| Auto Turn On Level | 1mV Input Signal (With All Inputs) |
| Power Consumption - Standby | < 0.5 Watts |
| Dimensions (WxHxD) | 17" x 5.7" x 16.7" (431mm x 144mm x 424mm) |
| Panel Height | 3U, 5.2" (132.6mm) |
| Weight | 33.75lb (15.3kg) |
