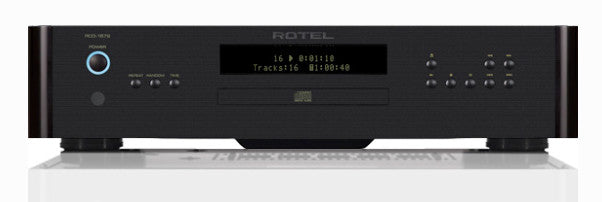

Rotel RCD-1572 MKII CD Player
Rotel
Rotel RCD-1572 MKII CD Player
The RCD-1572MKII compact disc player follows Rotel’s proud tradition of delivering award winning CD players since 1989 supporting the over 200 billion CDs sold in the market with authentic, genuine detail delivering an exceptional sense of space and depth.
Utilizing an ultra-low noise in-house manufactured toroidal transformer the RCD-1572MKII’s circuits are electrically and physically isolated removing unwanted distortion and lowering the noise floor.
A premium Texas Instruments 32-bit DAC delivers exceptional frequency response to fully balanced differential XLR Balanced, RCA and coaxial digital outputs.
The RCD-1572MKII is both classic and refined ready for your music collection delivering stunning detail and extraordinary clarity.
| Power Supply | AB / Custom Made Toroidal Power Supply |
| DAC (Digital to Analog Converter) | Texas Instruments Premium 32-bit / 384kHz |
| Total Harmonic Distortion + Noise |
< 0.0005% @ 1kHz |
| Frequency Response | 20-20kHz |
| Channel Balance | +/- 0.5dB |
| Channel Separation | > 118dB @ 10kHz |
| Signal to Noise Ratio | > 118dB |
| Analog Output Level - Unbalanced RCA |
2.2V |
| Analog Output Level - Balanced XLR |
4.5V |
| Analog Out Impedance - Unbalanced RCA | 100 Ohms |
| Analog Out Impedance - Balanced XLR |
200 Ohms |
| Outputs |
|
| Dimensions (WxHxD) | 17" x 4" x 12 3/5" (431mm x 104mm x 320mm) |
| Front Panel Height | 2U, 3 1/2" (88.1mm) |
| Weight (Lbs/Kg) | 16.18lbs (7.34kg) |
View a PDF data sheet from the Rotel website for more information.
