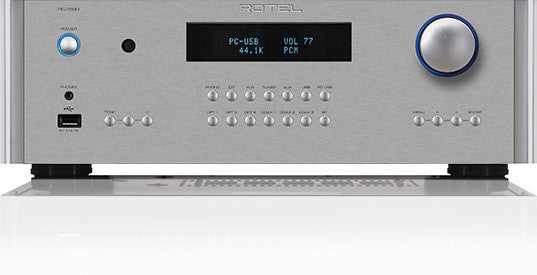

Rotel RC-1590MKII Stereo Pre-Amplifier
Rotel RC-1590MKII Stereo Pre-Amplifier Rotel RC-1590MKII Stereo Pre-Amplifier Rotel RC-1590MKII Stereo Pre-Amplifier Rotel RC-1590MKII Stereo Pre-Amplifier
$2,599.99

Rotel RC-1590MKII Stereo Pre-Amplifier

The RC-1590 MKII stereo preamplifier has been engineered to the highest audio performance levels and provides an incredible level of control and flexibility for the user. Starting with a high performance power supply consisting of two Rotel custom built toroidal transformers for maximum efficiency and low magnetic fields, these transformers provide low-noise isolation between the analog and digital signals. They are part of a reference grade power supply consisting of individual analog and digital regulator circuits with custom-made slit-foil capacitors. Slit-foil capacitors have very quick charge/discharge times and low signal loss ensuring tight bass performance.

Power Supply
AB / Custom Designed Dual Toroidal Transformers
Total Harmonic Distortion < 0.002%
Analog Inputs
  • 1x XLR (Balanced)
  • 3x RCA (Unbalanced)
  • 1x RCA Phono (Unbalanced, MM)
Digital Inputs
  • 3x Optical
  • 3x Coaxial
  • Bluetooth with AptX
  • PC-USB
  • Front USB (iOS Devices Only)
Outputs
  • 2x XLR (Unbalanced) Pre Out
  • 2x RCA (Unbalanced) Pre Out
  • 1x RCA (Unbalanced) Line Out
  • 2x RCA (Mono Sub Out)
  • 1x 3.5mm Headphone Jack (Front)
  • 1x Optical
  • 1x Coaxial
DAC (Digital to Analog Converter) Texas Instruments Premium 32-bit / 384kHz
Frequency Response - Phono Input 20-20kHz (+0.3dB, -0.2dB)
Frequency Response - Line Level Inputs RCA
10-100kHz (+0dB, -0.1dB)
Frequency Response - Line Level Inputs XLR
10-100kHz (+0dB, -0.1dB)
Frequency Response - Digital Inputs 20-20kHz (+/- 0.5dB, Max)
Input Sensitivity / Impedance - Phono Input MM
2.5mV / 47k Ohms
Input Sensitivity / Impedance - Line Level Inputs RCA
150mV / 100k Ohms
Input Sensitivity / Impedance - Line Level Inputs XLR 250mV / 100k Ohms
Input Sensitivity / Impedance - Digital Inputs
0dBfs / 75 Ohms
Preamp Output - Unbalanced RCA
1V
Preamp Output - Unbalanced XLR
2V
Signal to Noise Ratio - Phono Input (MM) 80dB
Signal to Noise Ratio - Line Level Imputs RCA
117dB
Signal to Noise Ratio - Line Level Imputs XLR
115dB
Signal to Noise Ratio - Digital Inputs
108dB
Available Sample Rates - Coaxial / Optical 24-bit / 192kHz
Available Sample Rates - PC-USB
  • USB Class 1.0 (up to 24-bit 96kHz)
  • USB Class 2.0 (up to 32-bit 384kHz) - Driver Installation Required
  • MQA and MQA Studio (up to 32-bit 384kHz)
  • Roon Tested
Power Consumption - Normal < 0.5 Watts
Dimensions (WxHxD) 17" x 5 11/16" x 13 7/9" (431mm x 144mm x 348mm)
Panel Height 3U, 5 1/4" (132.6mm)
Weight 22.27lbs (10.1kg)
