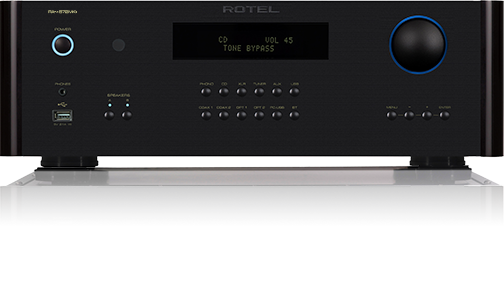

Rotel RA-1572MkII Integrated Amplifier
Rotel RA-1572MkII Integrated Amplifier Rotel RA-1572MkII Integrated Amplifier Rotel RA-1572MkII Integrated Amplifier
$2,199.99 $2,599.99

Rotel RA-1572MkII Integrated Amplifier

The RA-1572MKII Integrated Amplifier brings your music to life with exceptional fidelity delivering 120 Watts of Class AB output into 8 ohms with deep, controlled bass energy. The audiophile grade DAC, analog, digital, aptXTM and AAC Bluetooth, PC-USB supporting MQA and Moving Magnet Phono stage ensure exceptional detail and immersive soundstage.

Continuous Power Output - 8 Ohms
120 W/Ch
Maximum Power Output - 4 Ohms 200 W/Ch
Speaker A/B Yes
Amplifier Class AB / Custom Designed Toroidal Transformer
Total Harmonic Distortion < 0.018%
Analog Inputs
  • 1x XLR (Balanced)
  • 3x RCA (Unbalanced)
  • 1x RCA Phono (Unbalanced, MM)
Digital Inputs
  • 2x Optical
  • 2x Coaxial
  • Bluetooth with AptX
  • PC-USB
  • Front USB (iOS Devices Only)
Outputs
  • 1x RCA (Unbalanced)
  • 2x RCA (Mono Sub Out)
  • 1x 3.5mm Headphone Jack (Front)
DAC (Digital to Analog Converter) Texas Instruments 32-bit / 384kHz
Frequency Response - Phono Input 20-20kHz (0 +/- 0.5dB)
Frequency Response - Line Level Inputs
10-100kHz (0 +/- 0.5dB)
Frequency Response - Digital Inputs 10-90kHz (0 +/- 2dB, Max)
Damping Factor 300 (20-20kHz 8 Ohms)
Input Sensitivity / Impedance - Phono Input MM
2.1mV / 47k Ohms
Input Sensitivity / Impedance - Line Level Inputs RCA
270mV / 100k Ohms
Input Sensitivity / Impedance - Line Level Inputs XLR 440mV / 100k Ohms
Input Sensitivity / Impedance - Digital Inputs
0dBfs / 75 Ohms
Preamp Output / Impedance 1.5V / 470 Ohms
Signal to Noise Ratio - Phono Input (MM) 80dB
Signal to Noise Ratio - Line Level Imputs 100dB
Signal to Noise Ratio - Digital Inputs
100dB
Available Sample Rates - Coaxial / Optical 24-bit / 192kHz
Available Sample Rates - PC-USB
  • USB Class 1.0 (up to 24-bit 96kHz)
  • USB Class 2.0 (up to 32-bit 384kHz) - Driver Installation Required
  • MQA and MQA Studio (up to 24-bit 384kHz)
  • Roon Tested
Power Consumption - Normal < 0.5 Watts
Power Consumption - Network Wakeup < 2 Watts
Dimensions (WxHxD) 17" x 5 5/8" x 14 1/8" (431mm x 144mm x 358mm)
Panel Height 3U, 5 1/4" (132.6mm)
Weight 30.05lbs (13.63kg)
