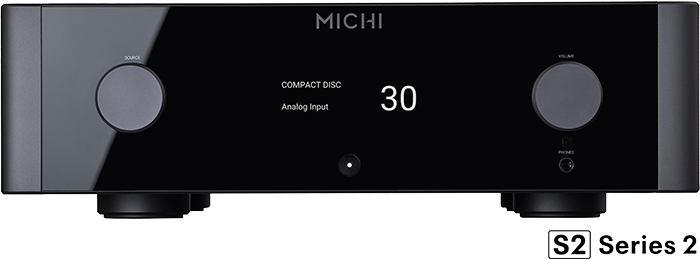

Rotel Michi X3 Series 2 Integrated Amplifier

The Michi X3 Series 2 Integrated Amplifier delivers uncompromised audio performance conveniently packaged in an elegant industrial design. The X3 delivers 350 Watts of Class AB output power into 4 ohm loads maintaining musical accuracy with exceptional acoustic detail from the Analog, Digital, PC-USB, apt-X Bluetooth and Moving Magnet Phono Stage source inputs.

Continuous Power Output - 8 Ohms	200 W/Ch
Maximum Power Output - 4 Ohms	350 W/Ch
Amplifier Class	AB / Custom Designed Toroidal Transformer
Total Harmonic Distortion	< 0.008%
Analog Inputs	1x XLR (Balanced) 3x RCA (Unbalanced) 1x RCA Phono (Unbalanced, MM)
Digital Inputs	3x Optical 3x Coaxial Bluetooth with AptX PC-USB
Outputs	1x RCA (Unbalanced) 2x RCA (Mono Sub Out) 1x 1/4" Headphone Jack (Front)
DAC (Digital to Analog Converter)	AKM Premium 32-bit / 768kHz
Frequency Response - Line Level Inputs	10-100kHz (+0dB, -0.4dB)
Frequency Response - Digital Inputs	20-20kHz (0 +/- 0.4dB)
Damping Factor	350 (20-20kHz 8 Ohms)
Input Sensitivity / Impedance - Phono Input MM	5.2mV / 47k Ohms
Input Sensitivity / Impedance - Line Level Inputs RCA	340mV / 100k Ohms
Input Sensitivity / Impedance - Line Level Inputs XLR	540mV / 100k Ohms
Input Sensitivity / Impedance - Digital Inputs	0dBFs / 75 Ohms
Preamplifier Output Level / Impedance	1.9V / 100 Ohms
Signal to Noise Ratio - Phono Input (MM/MC)	80dB
Signal to Noise Ratio - Line Level Imputs	102dB
Signal to Noise Ratio - Digital Inputs	102dB
Available Sample Rates - Coaxial / Optical	24-bit 192kHz
Available Sample Rates - PC-USB	USB Class 1.0 (up to 24-bit 96kHz) USB Class 2.0 (up to 24-bit 384kHz) - Driver Installation Required DSD and DoP Support Roon Tested
Power Consumption - Network Wakeup	< 2 Watts
Dimensions (WxHxD)	19" x 6" x 17 3/4" (485mm x 150mm x 452mm)
Panel Height	5 1/4" (132mm)
Weight	63.7lb (28.9kg)
