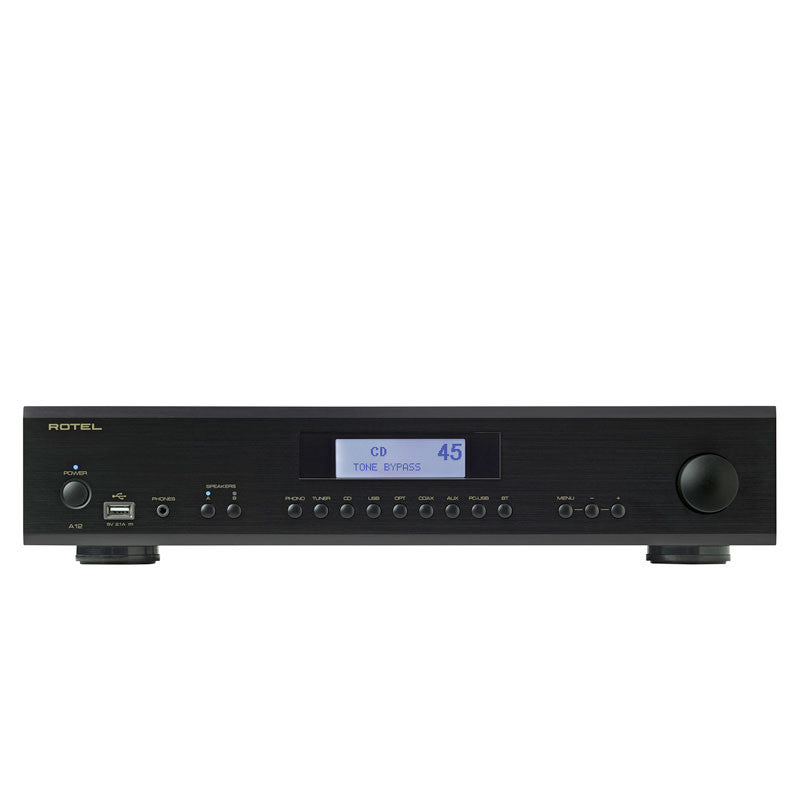

Rotel A12MKII Integrated Amplifier
Rotel
Rotel A12MKII Integrated Amplifier
The A12 MKII Integrated Amplifier delivers 60 Watts per channel of Class AB amplification from your favorite sources including analog, digital, PC-USB with MQA, wireless aptXTM and AAC Bluetooth and Moving Magnet Phono stage. Critically tuned power supply, DAC and amplifier circuits ensure the A12MKII will deliver countless hours of entertainment.
| Continuous Power Output - 8 Ohms |
60 W/Ch |
| Maximum Power Output - 4 Ohms | 120 W/Ch |
| Speaker A/B | Yes |
| Amplifier Class | AB / Custom Designed Toroidal Transformer |
| Total Harmonic Distortion | < 0.018% |
| Analog Inputs |
|
| Digital Inputs |
|
| Outputs |
|
| DAC (Digital to Analog Converter) | Texas Instruments 32-bit / 384kHz |
| Frequency Response - Phono Input | 20-20kHz (0 +/- 0.5dB) |
| Frequency Response - Line Level Inputs |
10-100kHz (0 +/- 0.5dB) |
| Frequency Response - Digital Inputs | 10-90kHz (0 +/- 2dB, Max) |
| Damping Factor | 220 (20-20kHz 8 Ohms) |
| Input Sensitivity / Impedance - Phono Input MM |
3.4mV / 47k Ohms |
| Input Sensitivity / Impedance - Line Level Inputs RCA |
230mV / 24k Ohms |
| Input Sensitivity / Impedance - Digital Inputs |
0dBfs / 75 Ohms |
| Preamp Output / Impedance | 1.2V / 470 Ohms |
| Signal to Noise Ratio - Phono Input (MM) | 90dB |
| Signal to Noise Ratio - Line Level Imputs | 100dB |
| Signal to Noise Ratio - Digital Inputs |
103dB |
| Available Sample Rates - Coaxial / Optical | 24-bit / 192kHz |
| Available Sample Rates - PC-USB |
|
| Power Consumption - Normal | < 0.5 Watts |
| Dimensions (WxHxD) | 17" x 3 5/8" x 13 1/2" (430mm x 93mm x 345mm) |
| Panel Height | 3 1/8" (80mm) |
| Weight | 19.31lbs (8.76kg) |
