Monitor Audio Custom

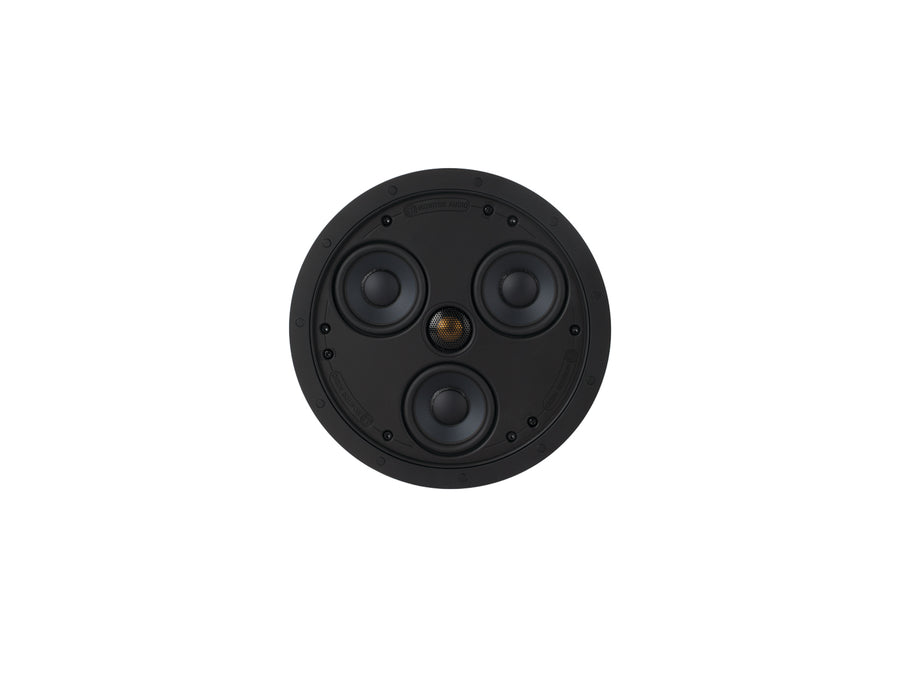

Monitor Audio Super Slim In-Ceiling and In-Wall Speakers (Each)

$549.99

Monitor Audio's innovative Super Slim speakers back box design delivers full frequency performance with wide installation versatility. Ideal for standard stud walls and where depth is restricted.

Model	CSS230	WSS130	WSS230	WSS430
Sensitivity (1W @ 1m)	86dB	87dB	87dB	87dB
Cut Out Diameter	8 1/4" (211mm)	NA	NA	NA
Cut Out Dimensions (H x W)	NA	13 1/2" x 4" (346mm x 101mm)	13 1/2" x 4" (346mm x 101mm)	13 1/2" x 4" (346mm x 101mm)
Mounting Depth	2" (50mm)	2" (50mm)	2" (50mm)	2" (50mm)
Power Handling (RMS)	40W (Full Range) 60W (With crossover set to 100Hz at 12dB/Octave)	60W (Full Range) 100W (With crossover set to 100Hz at 12dB/Octave)	60W (Full Range) 100W (With crossover set to 100Hz at 12dB/Octave)	75W (Full Range) 120W (With crossover set to 100Hz at 12dB/Octave)
Impedence	8 Ohms	8 Ohms	8 Ohms	8 Ohms
Driver Size and Technology	3x 3" C-CAM drivers (enabling slim profile with the performance of a single 6" driver) 3/4" C-CAM Gold Dome Tweeter Sealed rear enclosure for acoustic isolation back box Rubber plug can be removed for open back design and increased low frequency performance	3x 3" MMP II drivers (enabling slim profile with the performance of a single 6" driver) 1" C-CAM Gold Dome Tweeter	3x 3" C-CAM drivers (enabling slim profile with the performance of a single 6" driver) 1" C-CAM Gold Dome Tweeter	3x 3" C-CAM drivers (enabling slim profile with the performance of a single 6" driver) MPD High Frequency Transducer - Rotatable for vertical or horizontal installation)
Pre-Construction Bracket	CB6 (Purple)	WB3 (Dark Blue)	WB3 (Dark Blue)	WB3 (Dark Blue)
Sold As	Each	Each	Each	Each
