Monitor Audio Custom Subwoofers
Monitor Audio Custom Subwoofers Monitor Audio Custom Subwoofers Monitor Audio Custom Subwoofers Monitor Audio Custom Subwoofers
$1,499.99

Custom Subwoofers (Each)

Experience tremendous bass with discreet subwoofer options, a perfect complement to any architectural audio system.

The Monitor Audio ICS-8 subwoofer enables system-enhancing bass from the most visually discreet of settings. Developed primarily to complement the Monitor Audio CF230 speaker system, the ICS-8 fits into ceiling and wall cavities and under floors, enhancing the CF230 driver array and providing punchy bass from 40 Hz to 120 Hz.

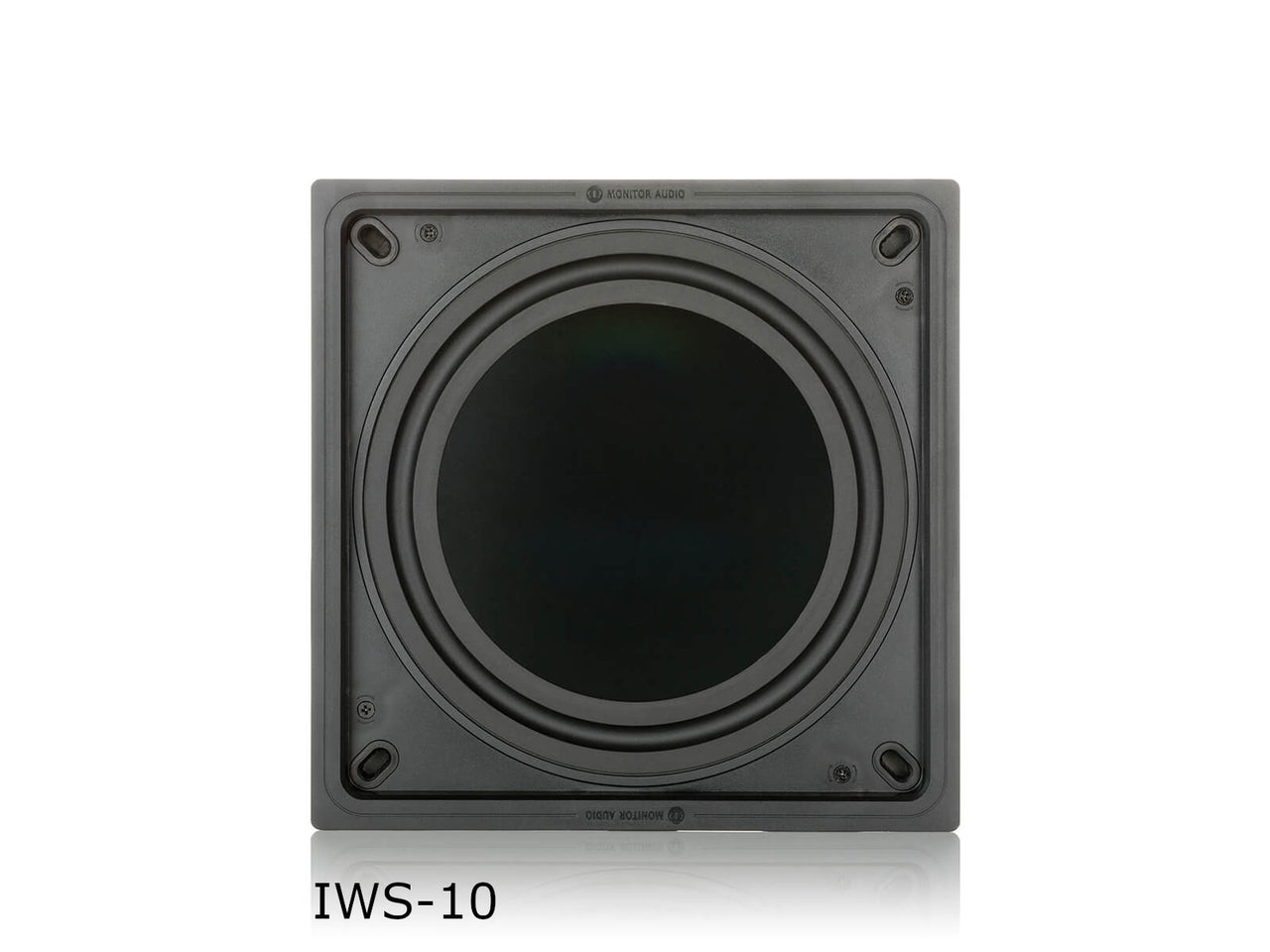

The IWS-10 is specified to produce excellent bass quality in a range of wall, ceiling, even floor locations, ideally but not exclusively with its IWB-10 back box.

The CW8 places all the power in the hands of installer and client. Engineered for control in operation, bass quality and concealment in-room, the compact CW8 cube will add explosive bass frequencies to music and AV systems when tucked behind furniture on room boundaries.

The CW10 places all the power in the hands of installer and client. Engineered for control in operation, bass quality and concealment in-room, the compact CW10 cube will add explosive bass frequencies to music and AV systems when tucked behind furniture on room boundaries.

Back Box:

  • IWB-10 $249.99

Flush Fit Brackets:

  • CFB3R Flush Fit Round Grille $79.99
  • CFB3SQ Flush Fit Square Grille $79.99
  • CFB3KIT Retrofit $79.99

Flush Fit or Retrofit Brackets are Required for Installation of ICS-8 Subwoofer

Model
ICS-8
IWS-10
CW8 CW10
Subwoofer Type In-Ceiling In-Wall Free Standing
Free Standing
Sensitivity (1W @ 1m) 85dB
86dB
NA
NA
Overall Cabinet Dimensions (H x W x D)
9 1/4" x 11" x 15 9/16" (235mm x 280mm x 396mm)
NA
10 5/8" x 10 1/4" x 10 7/8" (270mm x 260mm x 276mm)
12 3/8" x 12" x 12 5/8" (315mm x 305mm x 320mm)
Cut Out Dimensions (H x W) NA 11" x 11" (280mm x 280mm)
NA NA
Mounting Depth NA 3 1/2" (90mm)
NA NA
Power Handling (RMS) 150W - Full Range - IEC268-5 rating
150W
NA
NA
Impedance 8 Ohms (Nominal)
8 Ohms
NA
NA
Input Impedance NA NA > 20 K Ohms
> 20 K Ohms
Driver Size and Technology 8" Long Throw Bass Driver featuring C-CAM Cone Technology
10" C-CAM RDT Driver
      • 8" C-CAM Long Throw Driver
      • 2x 8" ABR's
      • 10" C-CAM Long Throw Driver
      • 2x 10" ABR's
      Amplifier Power Output NA NA 350W RMS at < 1% THD+N
      400W RMS at < 1% THD+N
      Brackets and Grilles
      • CFB3R Flush Fit Round Grille
      • CFB3SQ Flush Fit Square Grille
      • CFB3KIT Retrofit
      NA
      NA
      NA
      Back Box NA IWB-10 NA NA
