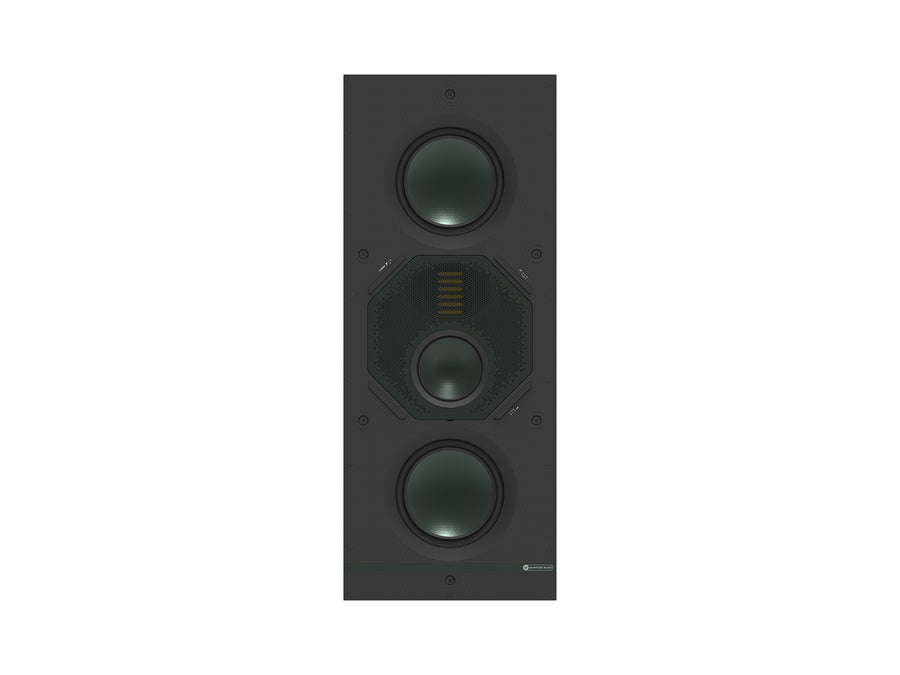

Monitor Audio Creator Series Tier 3 In-Wall Speakers (Each)
Monitor Audio Creator Series Tier 3 In-Wall Speakers (Each) Monitor Audio Creator Series Tier 3 In-Wall Speakers (Each)
$1,800.00

A range of high-performance in-wall speakers that boast engineering qualities similar to Tier 2, while providing superior acoustics and other advantages like boundary correction control and mid/high-frequency cut/boost options, plus the most advanced acoustic technologies.

  • 3-Way Arrangement
  • RDT III Bass Drivers
  • RST III Mid-Range Driver
  • MPD II Transducer
  • Rotating Mid-Pod
  • Tri-Grip II
  • Quik-Link
Model W3M
Type 3-Way In-Wall
Drivers
  • 1x MPD II Transducer
  • 1x 3" C-CAM Mid-Range Driver
  • 2x 5" RDT III Bass Drivers
Frequency Response 45Hz - 60kHz (Installed, -6dB)
Sensitivity (2.83Vrms @ 1m) 88dB
Nominal Impedance 6 Ohms
Minimum Impedance 4.8 Ohms @ 150Hz (20Hz to 20kHz)
SPL 122dB
Power Handling 60W - 225W
Crossover
  • LF/MF 650Hz
  • MF/HF 3500Hz
Other Features
  • Corner Switch ON/OFF
  • HF Switch   -/0/+
  • MF Switch  -/0/+
Mounting Depth
 3 3/8" (85mm)
Cut-Out (HxW) 20 3/4" (527mm) x 7 13/16" (198mm)
External Dimensions (HxWxD, Including Grille) 22 1/16" (560mm) x 9 1/8" (231mm) x 3 9/16" (90mm)
Weight 10lb 6oz (4.7kg)
Pre-Construction Bracket WM-B
