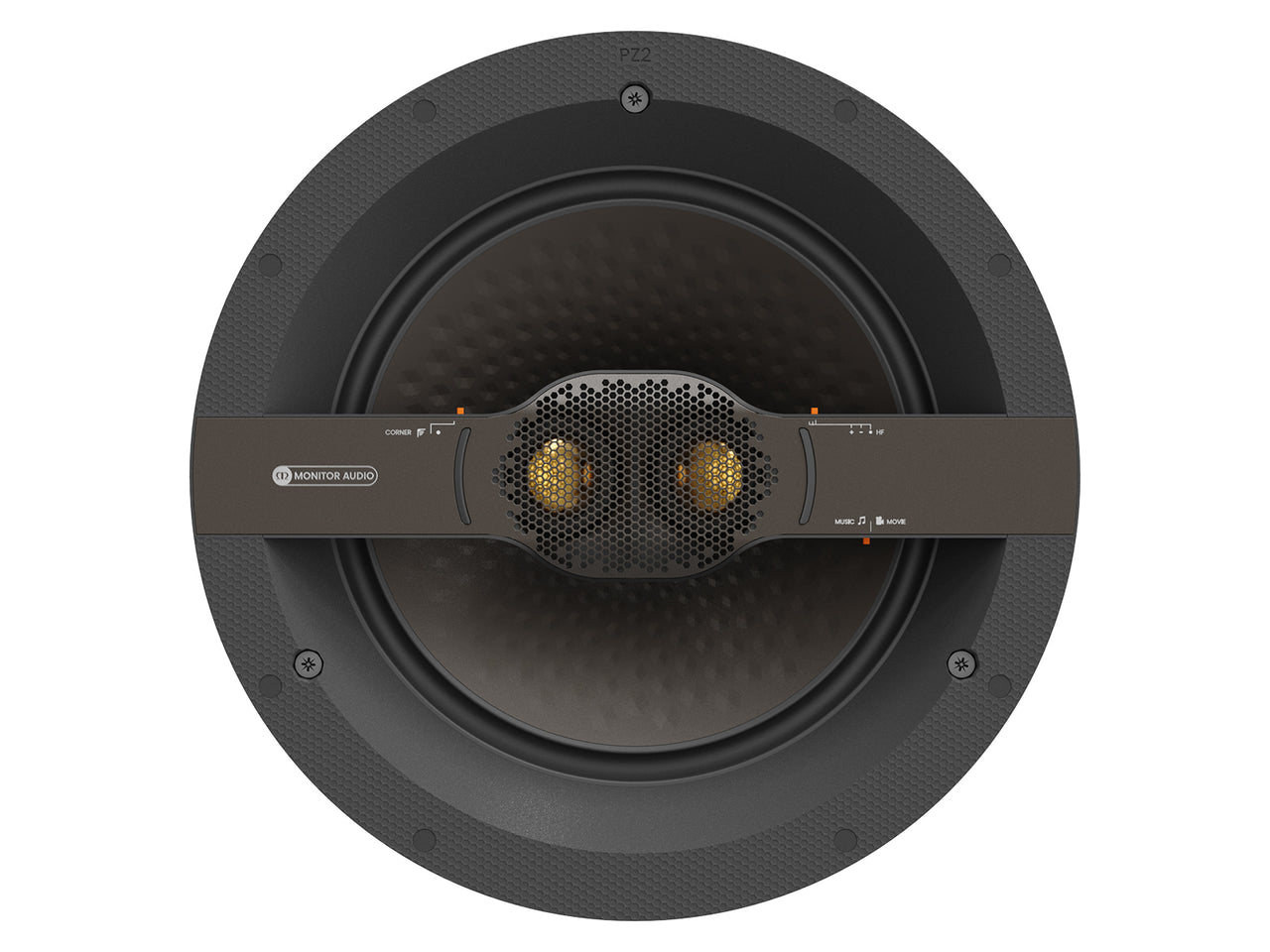

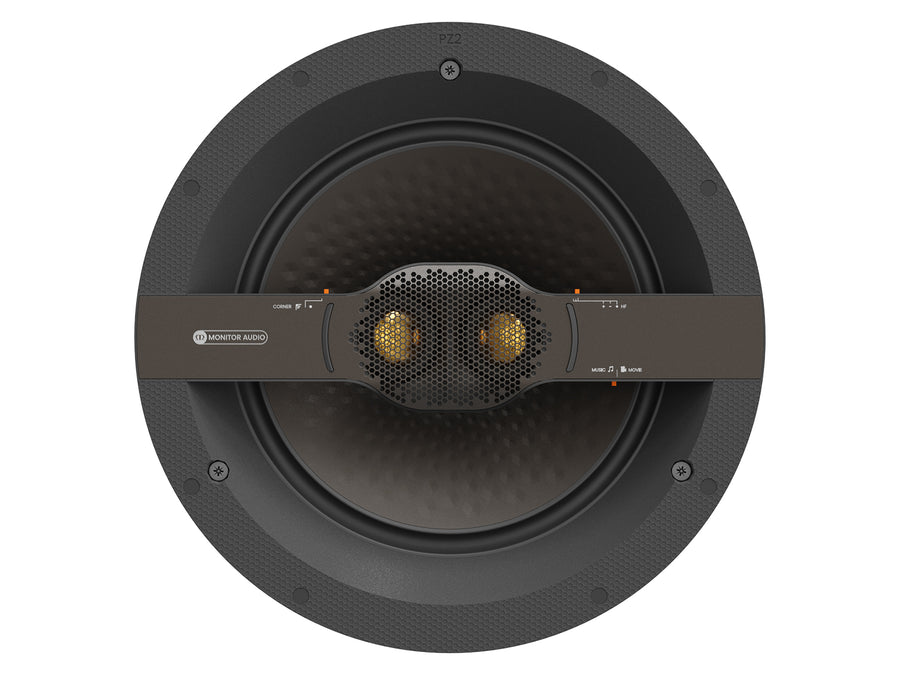

Monitor Audio Creator Series Tier 2 Stereo In-Ceiling Speakers (Each)
Monitor Audio Creator Series Tier 2 Stereo In-Ceiling Speakers (Each) Monitor Audio Creator Series Tier 2 Stereo In-Ceiling Speakers (Each) Monitor Audio Creator Series Tier 2 Stereo In-Ceiling Speakers (Each) Monitor Audio Creator Series Tier 2 Stereo In-Ceiling Speakers (Each)
$700.00

Tier 2 In-Ceiling and In-Wall Speakers boast the same quality engineering as Tier 1 with enhanced acoustic capabilities and features like boundary correction, high-frequency cut/boost, and dual-stereo T2X allowing for greater freedom in speaker placement.

  • 2-Way Arrangement
  • RST II Mid-Bass Drivers
  • C-CAM Tweeter with UD Waveguide II
  • T2X-Model
  • Trip-Grip II
  • Quik-Link
Model C2L-T2X C2M-T2X
Type 2-Way In-Ceiling, Mono or Stereo 2-Way In-Ceiling, Mono or Stereo
Drivers
  • 2x 1.25" C-CAM Tweeter
  • 1x 9" RST II Dual-Coil Bass Driver
  • 2x 1" C-CAM Tweeter
  • 1x 7" RST II Dual-Coil Bass Driver
Frequency Response 30Hz - 25kHz   (Installed, -6dB) 30Hz - 30kHz    (Installed, -6dB)
Sensitivity (2.83Vrms @ 1m)
86dB
Nominal Impedance
  • 4 Ohms (Mono)
  • 8 Ohms (Stereo)
  • 4 Ohms (Mono)
  • 8 Ohms (Stereo)
Minimum Impedance
  • 3.2 Ohms @ 15kHz (20Hz to 20kHz) (Mono)
  • 6.4 Ohms @ 15kHz (20Hz to 20kHz) (Stereo)
  • 3.4 Ohms @ 15kHz (20Hz to 20kHz) (Mono)
  • 6.8 Ohms @ 15kHz (20Hz to 20kHz) (Stereo)
SPL 117dB (Mono) 114dB
Power Handling
  • 60W - 240W (Mono)
  • 2x 60W - 240W (Stereo)
  • 40W - 150W (Mono)
  • 2x 75W (Stereo)
Crossover 2000Hz 2250Hz
Other Features
  • Corner Switch ON/OFF
  • HF Switch -/0/+
  • Music / Movie Switch
  • Mono / Stereo Switch
  • Corner Switch ON/OFF
  • HF Switch -/0/+
  • Music / Movie Switch
  • Mono / Stereo Switch
Mounting Depth
3 7/8" (99mm) 3 7/8" (99mm)
Cut-Out Hole Diameter 9 3/4" (248mm) 8 3/8" (212mm)
External Dimensions (HxWxD, Including Grille) 10 15/16" (278mm) x 10 15/16" (278mm) x 4 4/16" (103mm) 9 1/2" (242mm) x 9 1/2" (242mm) x 4 4/16" (103mm)
Weight 6lb (2.7kg) 4lb 10oz (2.1kg)
Pre-Construction Bracket CL-B CM-B
