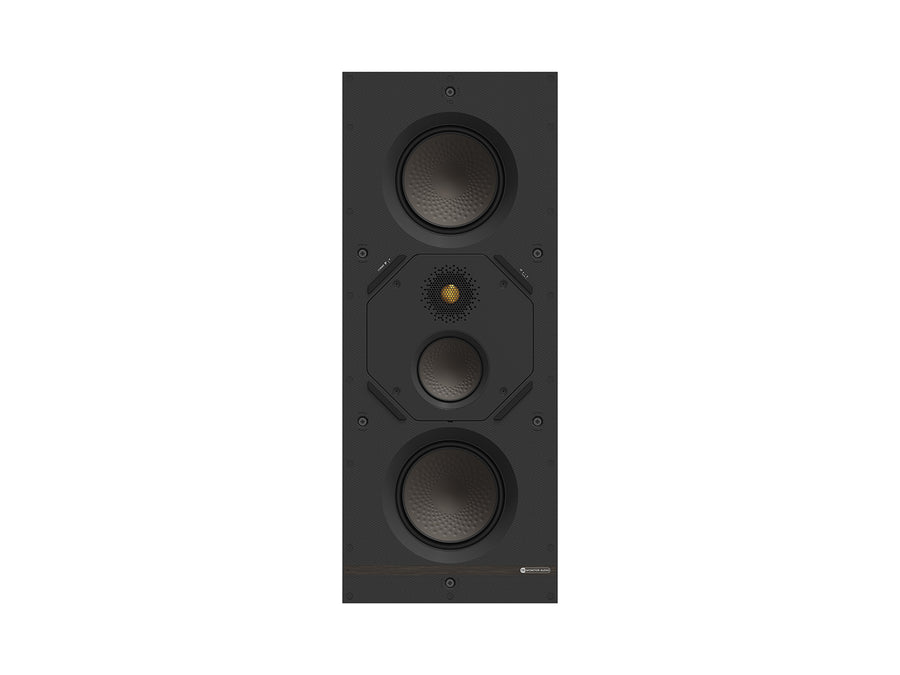

Monitor Audio Creator Series Tier 2 In-Wall Speakers (Each)
Monitor Audio Creator Series Tier 2 In-Wall Speakers (Each) Monitor Audio Creator Series Tier 2 In-Wall Speakers (Each) Monitor Audio Creator Series Tier 2 In-Wall Speakers (Each) Monitor Audio Creator Series Tier 2 In-Wall Speakers (Each)
$1,400.00

Tier 2 In-Wall Speakers boast the same quality engineering as Tier 1 with enhanced acoustic capabilities and features like boundary correction, high-frequency cut/boost, and dual-stereo T2X allowing for greater freedom in speaker placement.

  • 3-Way Arrangement
  • RST II Bass Drivers
  • RST II Mid-Range Drivers
  • C-CAM Tweeter with UD Waveguide II
  • Rotating Mid-Pod
  • Controlled Performance Model
  • Tri-Grip II
  • Quik-Link
Model W2M-CP
 W2M
Type 3-Way In-Wall 3-Way In-Wall
Drivers
  • 1x 1" C-CAM Tweeter
  • 1x 3" RST II Mid-Range Driver
  • 2x 5" RST II Bass Drivers
  • 1x 1" C-CAM Tweeter
  • 1x 3" RST II Mid-Range Driver
  • 2x 5" RST II Bass Drivers
Frequency Response 60Hz - 35kHz (Installed, -6dB) 40Hz - 35kHz  (Installed, -6dB)
Sensitivity (2.83Vrms @ 1m) 87dB 87dB
Nominal Impedance 6 Ohms 6 Ohms
Minimum Impedance 4.8 Ohms @ 1kHz (20Hz to 20kHz) 4.8 Ohms @ 1kHz (20Hz to 20kHz)
SPL 118dB 116dB
Power Handling 40W - 150W 45W - 180W
Crossover
  • LF/HF 550Hz
  • MF/HF 3000Hz
  • LF/HF 650Hz
  • MF/HF 3000Hz
Other Features
  • Corner Switch ON/OFF
  • HF Switch -/0/+
  • Sealed Cabinet
  • Corner Switch ON/OFF
  • HF Switch -/0/+
Mounting Depth
 3 13/16" (97mm) 3 3/8" (85mm)
Cut-Out (HxW) 20 3/4" (527mm) x 7 13/16" (198mm) 20 3/4" (527mm) x 7 13/16" (198mm)
External Dimensions (HxWxD, Including Grille) 22 1/16" (560mm) x 9 1/8" (231m) x 4 1/64" (102mm) 22 1/16" (560mm) x 9 1/8" (231m) x 3 9/16" (90mm)
Weight 9lb 11oz (4.4kg) 8lb 9oz (3.9kg)
Pre-Construction Bracket WM-B WM-B
