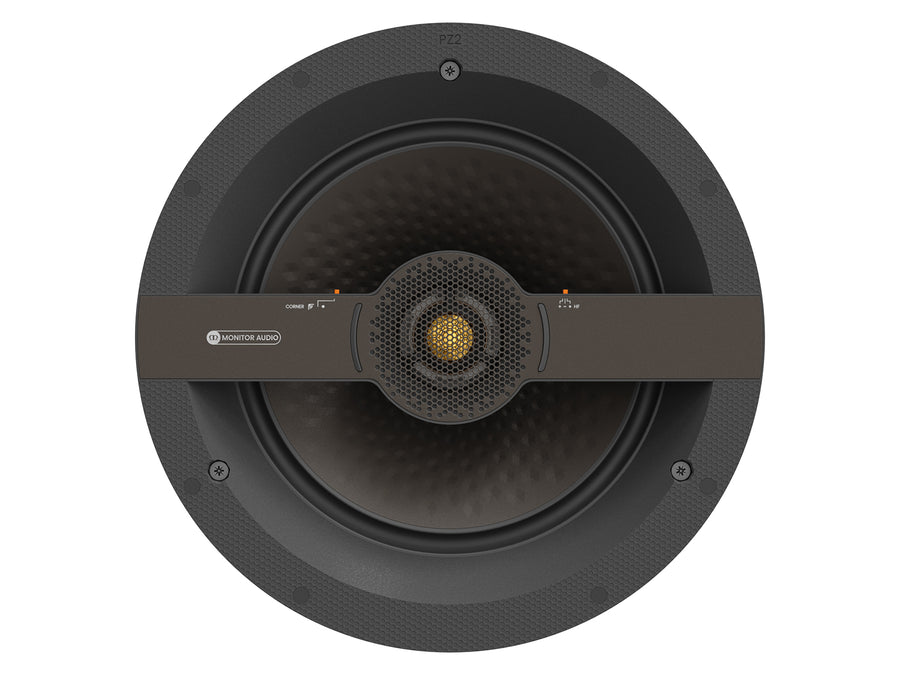

Monitor Audio Creator Series Tier 2 In-Ceiling Speakers (Each)
Monitor Audio Creator Series Tier 2 In-Ceiling Speakers (Each) Monitor Audio Creator Series Tier 2 In-Ceiling Speakers (Each) Monitor Audio Creator Series Tier 2 In-Ceiling Speakers (Each) Monitor Audio Creator Series Tier 2 In-Ceiling Speakers (Each) Monitor Audio Creator Series Tier 2 In-Ceiling Speakers (Each) Monitor Audio Creator Series Tier 2 In-Ceiling Speakers (Each) Monitor Audio Creator Series Tier 2 In-Ceiling Speakers (Each) Monitor Audio Creator Series Tier 2 In-Ceiling Speakers (Each) Monitor Audio Creator Series Tier 2 In-Ceiling Speakers (Each) Monitor Audio Creator Series Tier 2 In-Ceiling Speakers (Each)
$900.00

Tier 2 In-Ceiling and In-Wall Speakers boast the same quality engineering as Tier 1 with enhanced acoustic capabilities and features like boundary correction, high-frequency cut/boost, and dual-stereo T2X allowing for greater freedom in speaker placement.

  • 2-Way Arrangement
  • RST II Mid-Bass Drivers
  • C-CAM Tweeter with UD Waveguide II
  • Controlled Performance Models
  • T2X-Model
  • Trip-Grip II
  • Quik-Link
Model C2L-CP C2M-CP C2L C2M C2S
Type 2-Way In-Ceiling 2-Way In-Ceiling 2-Way In-Ceiling 2-Way In-Ceiling 2-Way In-Ceiling
Drivers
  • 1x 1.25" C-CAM Tweeter
  • 1x 9" RST II Bass Driver
  • 1x 1" C-CAM Tweeter
  • 1x 7" RST II Bass Driver
  • 1x 1.25" C-CAM Tweeter
  • 1x 9" RST II Bass Driver
  • 1x 1" C-CAM Tweeter
  • 1x 7" RST II Mid-Bass Driver
  • 1x 1" C-CAM Tweeter
  • 1x 5" RST II Mid-Bass Driver
Frequency Response 75Hz - 25kHz (Installed, -6dB) 70Hz - 35kHz  (Installed, -6dB) 30Hz - 25kHz  (Installed, -6dB) 35Hz - 35kHz    (Installed, -6dB) 40Hz - 30kHz (Installed, -6dB)
Sensitivity (2.83Vrms @ 1m) 89dB 87dB 88dB 86dB 84dB
Nominal Impedance 8 Ohms 8 Ohms 8 Ohms 8 Ohms 8 Ohms
Minimum Impedance 6.6 Ohms @ 10kHz (20Hz to 20kHz) 6.0 Ohms @ 15kHz (20Hz to 20kHz) 6.4 Ohms @ 15kHz (20Hz to 20kHz)
 6.6 Ohms @ 150Hz (20Hz to 20kHz) 6.8 Ohms @ 150Hz (20Hz to 20kHz)
SPL 120dB 116dB 117dB 114dB 111dB
Power Handling 50W - 200W 35W - 130W 60W - 240W 40W - 150W 35W - 130W
Crossover 2250Hz 2500Hz 2000Hz 2250Hz 2500Hz
Other Features
  • Corner Switch ON/OFF
  • HF Switch -/0/+
  • Sealed Cabinet
  • Corner Switch ON/OFF
  • HF Switch -/0/+
  • Sealed Cabinet
  • Corner Switch ON/OFF
  • HF Switch -/0/+
  • Corner Switch ON/OFF
  • HF Switch -/0/+
  • Corner Switch ON/OFF
  • HF Switch -/0/+
Mounting Depth
 6 63/64" (117.5mm) 6 63/64" (117.5mm) 3 7/8" (99mm) 3 7/8" (99mm) 3 7/8" (99mm)
Cut-Out Hole Diameter 9 3/4" (248mm) 8 3/8" (212mm) 9 3/4" (248mm) 8 3/8" (212mm) 6 3/4" (171mm)
External Dimensions (HxWxD, Including Grille) 10 15/16" (278mm) x 10 15/16" (278mm) x 7 1/8" (181mm) 9 1/2" (242mm) x 9 1/2" (242mm) x 4 4/16" (181.5mm) 10 15/16" (278mm) x 10 15/16" (278mm) x 4 4/16" (103mm) 9 1/2" (242mm) x 9 1/2" (242mm) x 4 4/16" (181.5mm) 7 15/16" (201mm) x 7 15/16" (201mm) x 4 4/16" (103mm)
Weight 7lb 5 oz (3.3kg) 5lb 11 oz (2.6kg)
 5lb 8oz (2.5kg) 4lb 6oz (2kg) 3lb 5oz (1.5kg)
Pre-Construction Bracket CL-B CM-B CL-B CM-B CS-B
