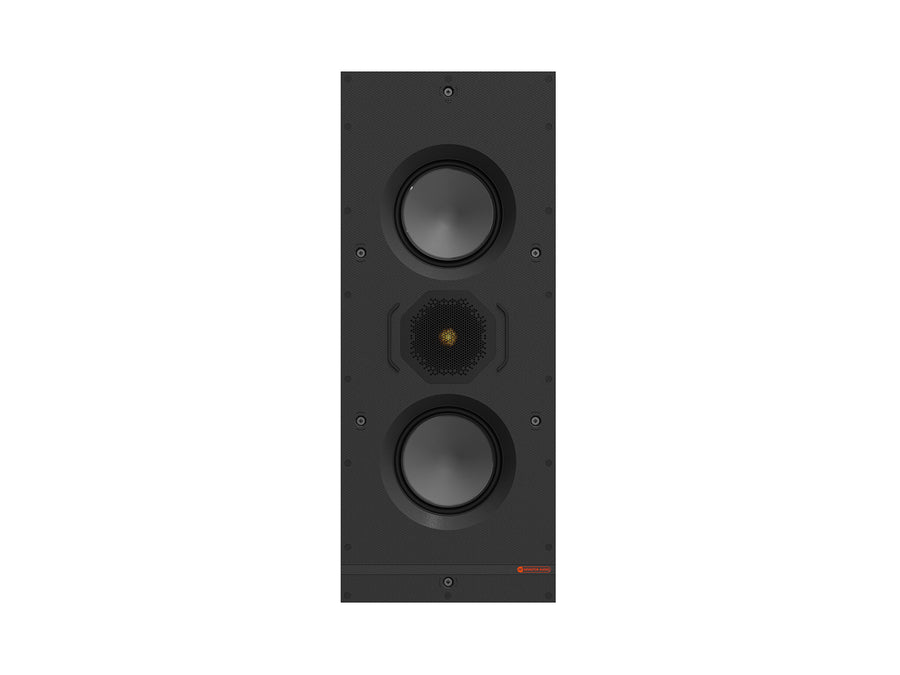

Monitor Audio Creator Series Tier 1 In-Wall Speakers (Each)
Monitor Audio Creator Series Tier 1 In-Wall Speakers (Each) Monitor Audio Creator Series Tier 1 In-Wall Speakers (Each) Monitor Audio Creator Series Tier 1 In-Wall Speakers (Each) Monitor Audio Creator Series Tier 1 In-Wall Speakers (Each)
$700.00

A broad selection of in-wall speakers is constructed for cost-effective placements where product practicality and reliable acoustic performance are essential.

  • 2-Way Arrangement
  • C-CAM Mid-Bass Drivers
  • C-CAM Tweeter with UD Waveguide I
  • Tri-Grip II
  • Quik-Link
Model W1M
 W1M-E
Type 2-Way In-Wall 2-Way In-Wall
Drivers
  • 1x 1" C-CAM Tweeter
  • 2x 5" C-CAM Mid-Bass Driver
  • 1x 1" C-CAM Tweeter
  • 2x 5" C-CAM Mid-Bass Driver
Frequency Response 40Hz - 30kHz (Installed, -6dB) 40Hz - 30kHz  (Installed, -6dB)
Sensitivity (2.83Vrms @ 1m) 87dB 84dB
Nominal Impedance 6 Ohms 8 Ohms
Minimum Impedance 4.8 Ohms @ 15kHz (20Hz to 20kHz) 6.5 Ohms @ 200Hz (20Hz to 20kHz)
SPL 113dB 110dB
Power Handling 30W - 110W 25W - 100W
Crossover 2750Hz 2000Hz
Mounting Depth
 3 3/8" (85mm) 3 3/8" (85mm)
Cut-Out (HxW) 20 3/4" (527mm) x 7 13/16" (198mm) 20 3/4" (527mm) x 7 13/16" (198mm)
External Dimensions (HxWxD, Including Grille) 22 1/6" (560mm) x 9 1/8" (231mm) x 3 9/16" (90mm) 22 1/6" (560mm) x 9 1/8" (231mm) x 3 9/16" (90mm)
Weight 7lb 8oz (3.4kg) 5lb 11oz (2.6kg)
Pre-Construction Bracket WM-B CM-B
