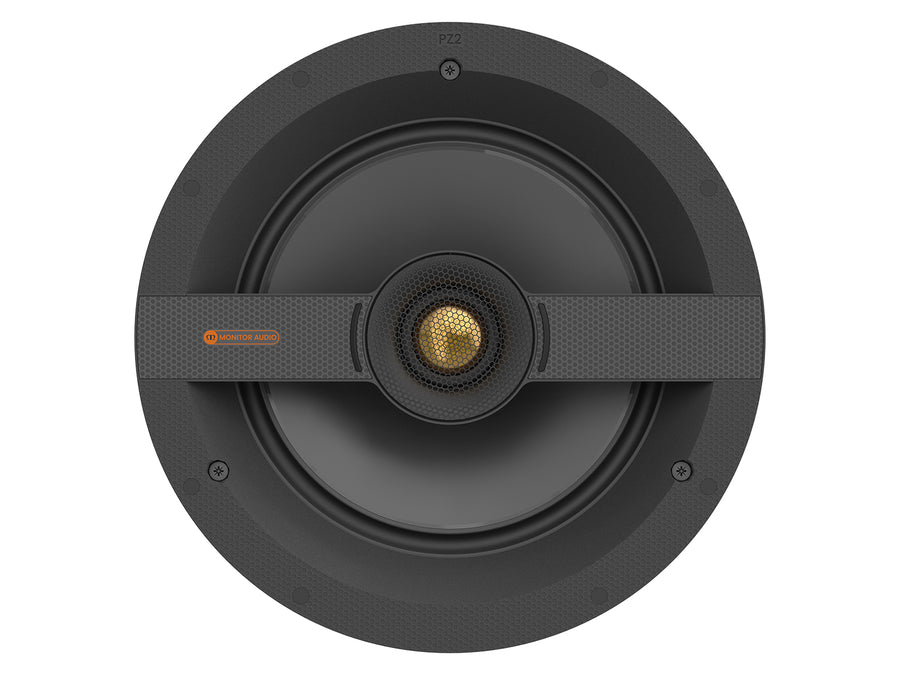

Monitor Audio Creator Series Tier 1 In-Ceiling Speakers (Each)
Monitor Audio Creator Series Tier 1 In-Ceiling Speakers (Each) Monitor Audio Creator Series Tier 1 In-Ceiling Speakers (Each) Monitor Audio Creator Series Tier 1 In-Ceiling Speakers (Each) Monitor Audio Creator Series Tier 1 In-Ceiling Speakers (Each) Monitor Audio Creator Series Tier 1 In-Ceiling Speakers (Each) Monitor Audio Creator Series Tier 1 In-Ceiling Speakers (Each)
$650.00

A broad selection of in-wall and in-ceiling speakers constructed for cost-effective placements where product practicality and reliable acoustic performance are essential.

  • 2-Way Arrangement
  • C-CAM Mid-Bass Drivers
  • C-CAM Tweeter with UD Waveguide I
  • Tri-Grip II
  • Quik-Link
Model C1L C1M C1S
Type 2-Way In-Ceiling 2-Way In-Ceiling 2-Way In-Ceiling
Drivers
  • 1x 1.25" C-CAM Tweeter
  • 1x 9" C-CAM Mid-Bass Driver
  • 1x 1" C-CAM Tweeter
  • 1x 7" C-CAM Mid-Bass Driver
  • 1x 1" C-CAM Tweeter
  • 1x 5" C-CAM Mid-Bass Driver
Frequency Response 30Hz - 25kHz (Installed, -6dB) 35Hz - 30kHz  (Installed, -6dB) 40Hz - 30kHz (Installed, -6dB)
Sensitivity (2.83Vrms @ 1m) 88dB 86dB 84dB
Nominal Impedance 8 Ohms 8 Ohms 8 Ohms
Minimum Impedance 6.4 Ohms @ 150Hz (20Hz to 20kHz) 6.5 Ohms @ 150Hz (20Hz to 20kHz) 6.6 Ohms @ 150Hz (20Hz to 20kHz)
SPL 116dB 113dB 110dB
Power Handling 40W - 150W 35W - 130W 25W - 100W
Crossover 2000Hz 2000Hz 3000Hz
Mounting Depth
 3 7/8" (99mm) 3 7/8" (99mm) 3 7/8" (99mm)
Cut-Out Hole Diameter 9 3/4" (248mm) 8 3/8" (212mm) 6 3/4" (171mm)
External Dimensions (HxWxD, Including Grille) 10 15/16" (278mm) x 10 15/16" (278mm) x 4 4/16" (103mm) 9 1/2" (242mm) x 9 1/2" (242mm) x 4 4/16" (103mm) 7 15/16" (201mm) x 7 15/16" (201mm) x 4 4/16" (103mm)
Weight 5lb 8oz (2.5kg) 4lb 3oz (1.9kg) 3lb 1oz (1.4kg)
Pre-Construction Bracket CL-B CM-B CS-B
