McIntosh MA9500 Integrated Amplifier

McIntosh

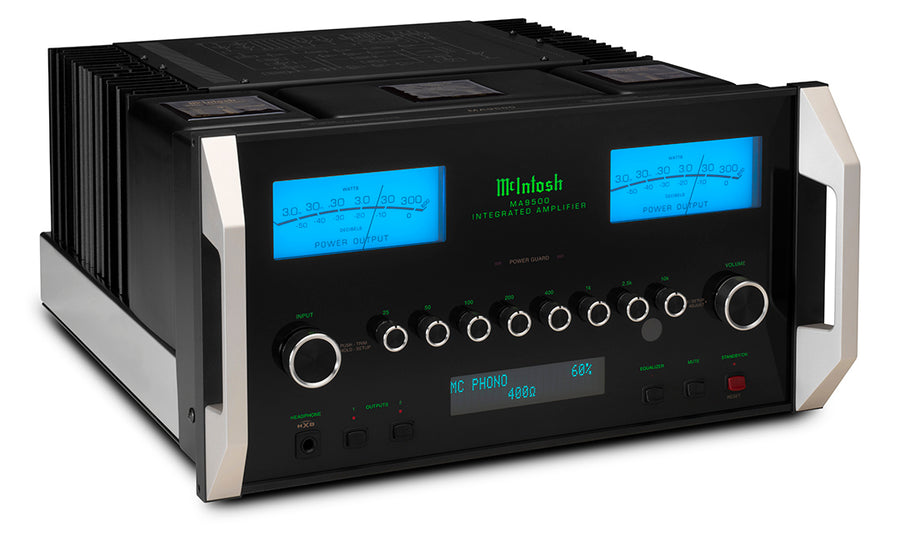

McIntosh MA9500 Integrated Amplifier

$20,000.00
This product is available in-store or by phone only

Available for In-Store Shopping Only

    Experience the power and clarity of music with the McIntosh MA9500 Integrated Amplifier. Its unique McIntosh Autoformer™ design guarantees your speakers will always receive 300 Watts of clean, effortless power - perfect for any speaker impedance. As the upgraded version of the award-winning MA9000, the MA9500 takes performance to new heights.

    • Power Guard - McIntosh designed and patented circuit that prevents speaker clipping. Photo-optics react in 1/1000th of a second to regulate power levels to speaker, protecting the speakers and the amplifier. A waveform comparison circuit continuously monitors both input and output signals. Power Guard dynamically adjusts the input level to avoid clipping while preventing harsh sounding distortion.
    • Sentry Monitor - McIntosh designed and patented circuit that activates in case of accidental “shorts" in speaker wires. Fuse-less short-circuit protection circuit disengages the output stage before current exceeds safe operating level-resets automatically.
    • McIntosh Monogrammed Heatsinks
    • Home Theater PassThru
    • 8-Band Equalizer
    • Output Autoformer -   Unique McIntosh technology delivers the full rated amplifier output with the least possible distortion into loudspeaker impedances of 2, 4, or 8 Ohms; you get all the power you paid for and the freedom to choose any loudspeaker.
    Output Per Channel 300W
    Number of Channels 2
    Speaker Impedance 2 or 4 or 8 Ohms
    Rated Power Band 20Hz - 20kHz
    Total Harmonic Distortion 0.005%
    Dynamic Headroom 2.8dB
    Frequency Response
    • 20Hz - 20kHz - +0, -0.5dB
    • 10Hz - 100kHz - +0, -3dB
    Damping Factor >40
    Analog Inputs
    • 2x Balanced
    • 6x Unbalanced
    • 1x Moving Magnet Phono (RCA) - Adjustable Loading
    • 1x Moving Coil Phono (RCA) - Adjustable Loading
    Digital Inputs
    • 2x Coaxial (RCA)
    • 2x Optical (Toslink)
    • 1x MCT
    • 1x USB (Type-B)
    • 1x HDMI Arc
    Outputs
    • 1x Balanced Variable
    • 1x Unbalanced Fixed
    • 2x Unbalanced Variable
    • 1/4" High Drive with Headphone Crossfeed Director (HXD)
    DAC Type 8-Channel, 32-bit/384kHz PCM/DSD, Quad Balanced
    Sample Rate
    • Coaxial - 24-bit/44.1kHz to 192kHz
    • Optical -    24-bit/44.1kHz to 192kHz
    • MCT - 16-bit/44.1kHz (CD), DSD64 (SACD)
    • USB - 32-bit/44.1kHz to 192kHz (PCM), DSD64, DSD128, DSD256, DSD512, DXD352.8kHz, DXD384kHz
    Dimensions (WxHxD) 17 1/2" (44.5cm) x 9 7/16" (24cm) x 19 3/4" (50.2cm)
    Weight 101lbs (45.8kg)
