McIntosh MA5300 Intregrated Amplifier
McIntosh MA5300 Intregrated Amplifier McIntosh MA5300 Intregrated Amplifier McIntosh MA5300 Intregrated Amplifier
$8,500.00



Available for In-Store Shopping Only

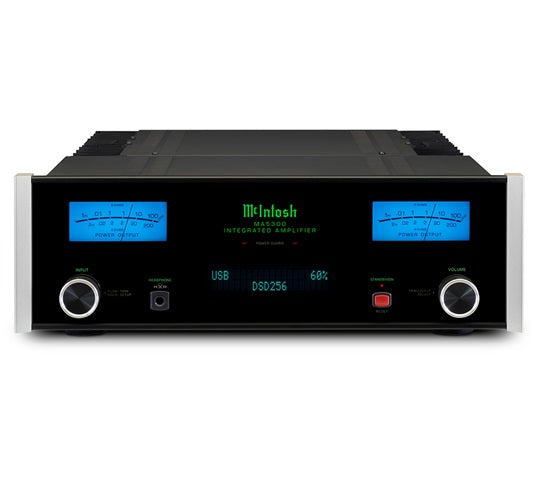

Introducing the McIntosh MA5300 Integrated Amplifier - a powerful solid state amplifier designed for smaller spaces and beginner home audio systems. Delivering 100 Watts per channel into 8 Ohm speakers or 160 Watts per channel into 4 Ohm speakers, you'll enjoy accurate and high-quality sound. Plus, the dual scale blue Watt meters provide precise power output readings for 4 and 8 Ohm impedances.

  • Power Guard -   McIntosh designed and patented circuit that prevents speaker clipping. Photo-optics react in 1/1000th of a second to regulate power levels to speaker, protecting the speakers and the amplifier. A waveform comparison circuit continuously monitors both input and output signals. Power Guard dynamically adjusts the input level to avoid clipping while preventing harsh sounding distortion.
  • Sentry Monitor -   McIntosh designed and patented circuit that activates in case of accidental “shorts" in speaker wires. Fuse-less short-circuit protection circuit disengages the output stage before current exceeds safe operating level-resets automatically.
  • McIntosh Monogrammed Heatsinks
  • Home Theater PassThru
Output Per Channel
  • 100W - 8 Ohms
  • 160W - 4 Ohms
Number of Channels 2
Speaker Impedance 4 or 8 Ohms
Rated Power Band 20Hz - 20kHz
Total Harmonic Distortion 0.005%
Dynamic Headroom 1.8dB
Frequency Response
  • 20Hz - 20kHz - +0, -0.5dB
  • 10Hz - 100kHz - +0, -3dB
Damping Factor
  • >200 - 8 Ohms
  • >100 - 4 Ohms
Analog Inputs
  • 1x Balanced
  • 4x Unbalanced
  • 1x Moving Magnet Phono (RCA) - Fixed Loading
Digital Inputs
  • 2x Coaxial (RCA)
  • 2x Optical (Toslink)
  • 1x MCT
  • USB (Type-B)
Outputs
  • 1x Unbalanced Variable
  • 1/4" High Drive Headphone
DAC Type 8-Channel, 32-bit/384kHz PCM/DSD, Quad Balanced
Sample Rate
  • Coaxial - 24-bit/44.1kHz to 192kHz
  • Optical -  24-bit/44.1kHz to 192kHz
  • MCT - 16-bit/44.1kHz (CD), DSD64 (SACD)
  • USB - 32-bit/44.1kHz to 192kHz (PCM), DSD64, DSD128, DSD256, DXD352.8kHz, DXD384kHz
Dimensions (WxHxD) 17 1/2" (44.45cm) x 6" (15.2cm) x 18 3/4" (47.6cm)
Weight 38lbs (17.2kg)
