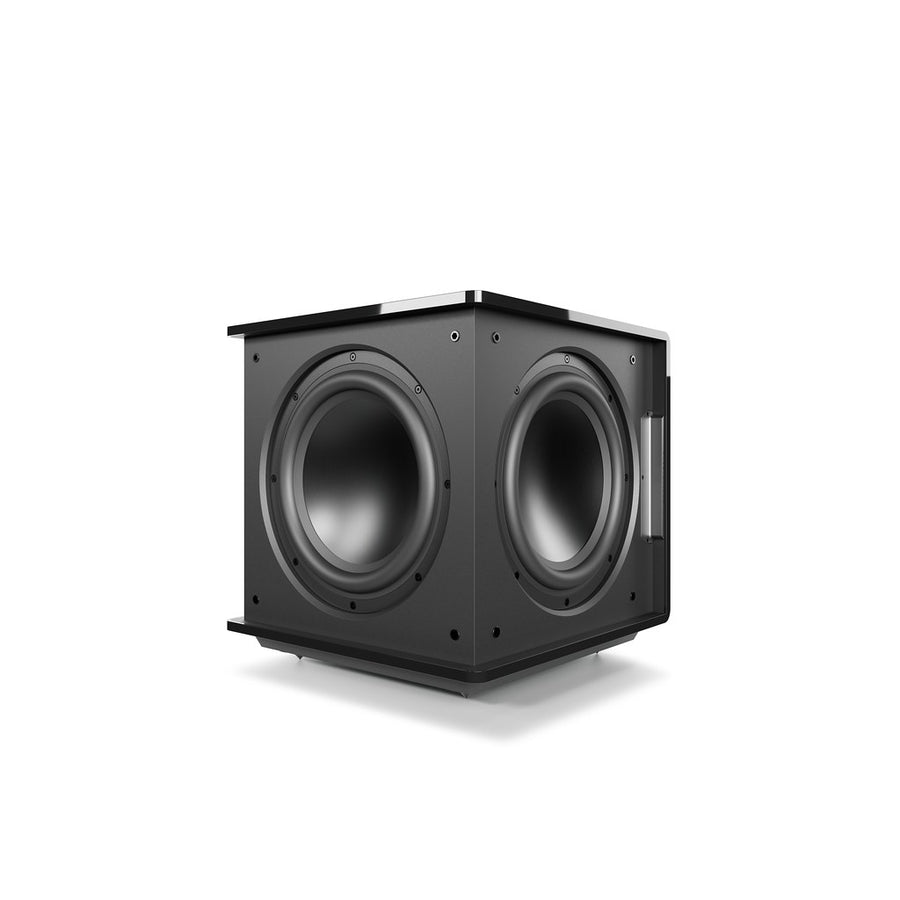

MartinLogan Grotto 12 Subwoofer
MartinLogan
The original Grotto subwoofer set a standard for clean, powerful bass in a compact, décor-friendly design. The all-new Grotto Series carries on that legacy with advanced amplification, precision drivers, and ARC Genesis Room Correction; delivering deep, controlled, and impactful bass from an elegantly understated form. With larger drivers and more power than its smaller siblings, the Abyss 8 and 10, the Grotto 12’s Hybrid Woofer System uses dual 12-inch passive radiators to enhance the low frequency output of its powerful, active 12-inch aluminum cone woofer. This high-output woofer system is driven by robust amplification and a best-in-class 64-bit DSP Engine to extract maximum performance. Grotto 12 offers a wide range of connectivity options including XLR, RCA, Speaker Level, and built-in wireless, plus the added convenience of the MartinLogan Subwoofer Control App. With support for the award-winning Anthem Room Correction(ARC) system, Grotto 12 can also be expertly tuned in a matter of minutes using the optional ARC Calibration Kit.
| Digital Signal Processor |
Ultra High-Resolution 500MHz Vojtko DSP Engine with 64bit processing |
| Frequency Response | 22–120 Hz ±3 dB (Anechoic via LFE input) |
| Low Frequency Transducer |
Triple 12" (25.4cm) Hybrid Woofer System consisting of 1x high-excursion, aluminum cone in a cast aluminum basket with 2x aluminum cone passive radiators for enhanced low frequency output. |
| Cabinet |
Sealed 1" thick MDF cabinet with dual center braces and reinforced MDF woofer baffles |
| Amplifier |
MartinLogan Magnitude MT-2kW Amplifier: 2000W peak (1000W continuous) |
| Controls (Backplate) |
|
| Controls (via Bluetooth) |
|
| Inputs |
|
| Finish | Gloss Black |
| Weight |
82.5 lbs (37.4 kg) |
| Dimensions (HxWxD) |
17.8" x 17.9" x 17.9" (45.2cm x 45.4cm x 45.4cm) |
