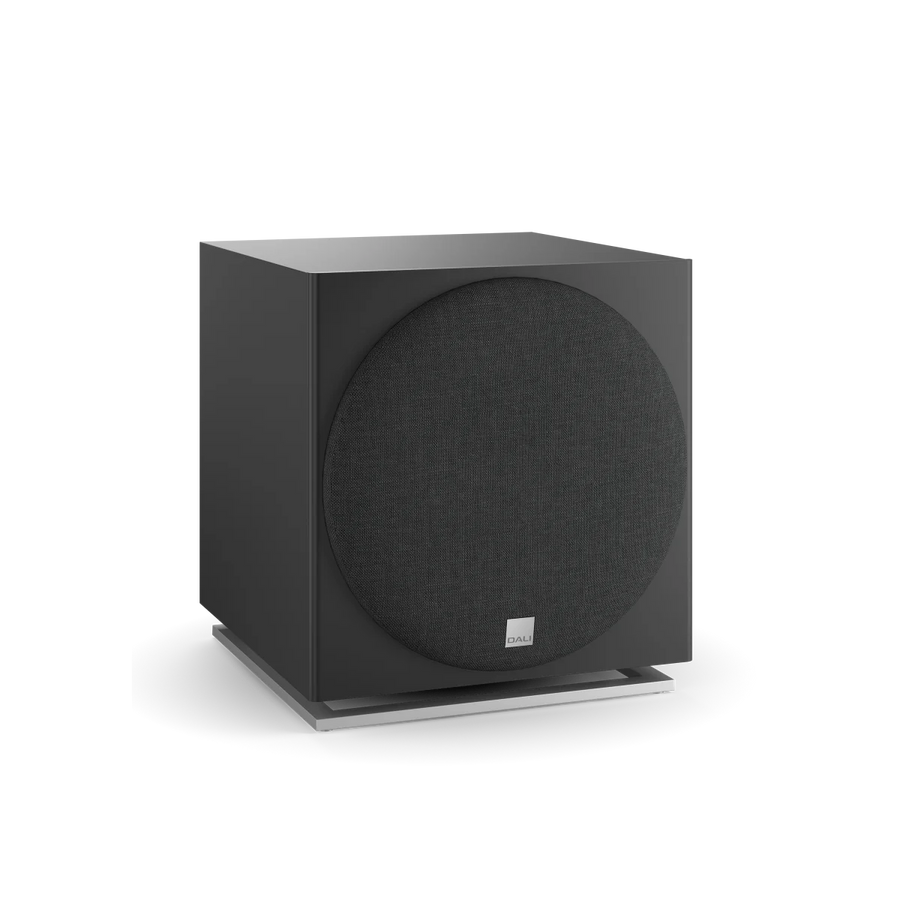

DALI SUB E-12 F Subwoofer
Dali





In a home cinema multi channel surround system the purpose of a subwoofer is to provide the bass tones that let you experience the true fidelity of wideband multi-channel recordings. A DALI subwoofer will serve that purpose perfectly, by presenting deep and well defined low frequencies. A DALI subwoofer will blend-in perfectly with any existing stereo main speaker system thanks to carefully selected built-in crossover roll-off, ultra low time shift, and woofer acoustics with soft and coherent overtone reproduction. The DALI subwoofers contradict the common (and sometimes reasonable) prejudice against boomy bass boxes, converting your system into a perfectly  balanced full-frequency range system. When properly installed, a DALI subwoofer will enable any sound system to reach a higher fidelity!
The heart of this subwoofer is the 12” front-firing long-stroke woofer. It is powered by an ultra-efficient Class-D amplifier. Embracing classic DALI design elements, the E-12 F will deliver a seamless low frequency extension of your AV system, and the powerful, well-balanced bass reproduction will flawlessly integrate with your main speakers. The aluminium cone woofer is capable of moving plenty of air with power and pistonic precision. This is due to the heavy system wielding a massive 4-layer, long-stroke voice coil for maximum control and efficient use of the subwoofer’s magnetic field.
Frequency Range (+/- 3 dB), Hz | 28 - 190 |
Maximum SPL (dB) | 112 dB |
Crossover Frequency (Hz) | 40 - 120 |
Low Frequency Driver | 1x 12" Long Stroke, Aluminum |
Enclosure Type | Bass reflex |
Bass Reflex Tuning Frequency (Hz) | 36 Hz |
Max. Amplifier Power Output (RMS Watt) | 220W |
Continuous IEC Power Output (RMS Watt) | 170W |
Input Impedance (Ohms) | 25k Ohms |
Connection Input(s) |
|
Recommended Placement |
|
Recommended Distance from Wall (cm) | > 5 cm |
Functions |
|
Max. Dimensions Incl. Base and Grille (HxWxD) | 370mm x 340mm x 380mm |
Weight | 14.7kg |
