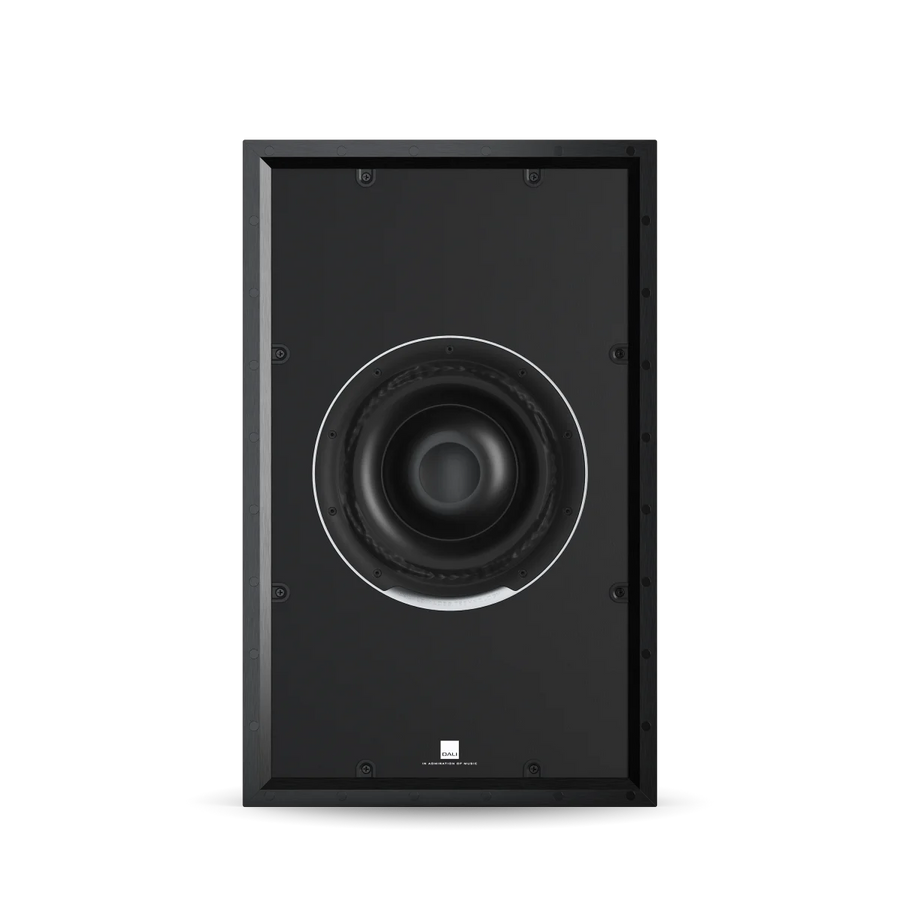

DALI Phanton IW Sub S-100 Custom Installation Subwoofer
DALI Custom Install
The PHANTOM IW SUB S-100 is a 10-inch in-wall, on-wall or floor-mounted subwoofer with an ultra-shallow profile for simple, discreet installation and ultimate versatility. The rigid construction, high power handling and high volume levels bring an exceptional musical and cinematic performance to any Hi-Fi stereo or multichannel home theatre setup.
Ultimate versatility
Designed for easy in-wall installation or on-wall mounting. The SUB S-100 can even be hidden out of sight below a sofa or piece of TV furniture.
Powerful Home Cinema Performance
The new 10-inch, ultra-shallow, long-stroke bass driver features Constant Surface Surround (CSS) technology, everything developed from the ground up by DALI's Engineering Team in Denmark.
Low-profile installation
With a mounting depth of only 102 mm, the PHANTOM IW SUB S-100 is the perfect balance between high performance and flexible placement.
Integrated backbox for simple installation
The fully enclosed cabinet makes installation extremely easy as you don’t need to install it into a backbox. The speaker is ready for mounting out-of-the-box.
Price includes shipping to most areas of Canada
| Frequency Range +/-3dB | 26Hz-250Hz |
| Sensitivity (2.83V/1m) | 84dB |
| Nominal Impedance | 6 Ohm |
| Maximum SPL | 110dB |
| Recommended Amplifier Power | 200-500W |
| Drivers | 1x 10" Long Throw, Low Profile |
| Installation Location |
|
| Outer Dimensions W/ Grille (HxWxD) | 25.87" x 16.22" x 4.22" (657mm x 412mm x 107mm) |
| Outer Dimensions W/O Grille (HxWxD) | 25.5" x 15.9" x 4.21" (647mm x 402mm x 106mm) |
| Cut-Out Dimensions (HxWxD) | 24.2" x 14.5" (615mm x 370mm) |
| Mounting Depth | 4.02" (102mm) |
| Weight w/ Grille | 38.03lbs (17.25kg) |
All SUB S-100 specifications are measured driven by the PHANTOM CI AMP-2500 DSP amplifier
