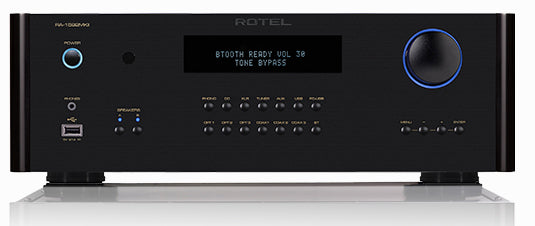

Rotel RA-1592MkII Integrated Amplifier
Rotel RA-1592MkII Integrated Amplifier Rotel RA-1592MkII Integrated Amplifier Rotel RA-1592MkII Integrated Amplifier
$3,599.99

Rotel RA-1592MkII Integrated Amplifier

The RA-1592 MKII delivers 200 Watts of Class AB output into 8 ohm speakers supporting your favorite analog, digital, XLR, aptXTM and AAC Bluetooth, PC-USB with MQA and Moving Magnet Phono stage inputs. The audiophile grade 32-bit/384kHz DAC and precisely tuned circuits delivers an unprecedented sound stage with exacting positioning.

Continuous Power Output - 8 Ohms
 200 W/Ch
Maximum Power Output - 4 Ohms 350 W/Ch
Speaker A/B Yes
Amplifier Class AB / Custom Designed Toroidal Transformer
Total Harmonic Distortion < 0.008%
Analog Inputs
  • 1x XLR (Balanced)
  • 3x RCA (Unbalanced)
  • 1x RCA Phono (Unbalanced, MM)
Digital Inputs
  • 3x Optical
  • 3x Coaxial
  • Bluetooth with AptX
  • PC-USB
  • Front USB (iOS Devices Only)
Outputs
  • 1x RCA (Unbalanced)
  • 2x RCA (Mono Sub Out)
  • 1x 3.5mm Headphone Jack (Front)
DAC (Digital to Analog Converter) Texas Instruments 32-bit / 384kHz
Frequency Response - Phono Input 20-20kHz (0 +/- 0.5dB)
Frequency Response - Line Level Inputs
 10-100kHz (0 +/- 0.5dB)
Frequency Response - Digital Inputs 10-90kHz (0 +/- 2dB, Max)
Damping Factor 600 (20-20kHz 8 Ohms)
Input Sensitivity / Impedance - Phono Input MM
 5.2mV / 47k Ohms
Input Sensitivity / Impedance - Line Level Inputs RCA
 340mV / 100k Ohms
Input Sensitivity / Impedance - Line Level Inputs XLR 540mV / 100k Ohms
Input Sensitivity / Impedance - Digital Inputs
 0dBfs / 75 Ohms
Preamp Output / Impedance
 1.9V / 100 Ohms
Signal to Noise Ratio - Phono Input (MM) 80dB
Signal to Noise Ratio - Line Level Imputs 103dB
Signal to Noise Ratio - Digital Inputs
 102dB
Available Sample Rates - Coaxial / Optical 24-bit / 192kHz
Available Sample Rates - PC-USB
  • USB Class 1.0 (up to 24-bit 96kHz)
  • USB Class 2.0 (up to 32-bit 384kHz) - Driver Installation Required
  • MQA and MQA Studio (up to 24-bit 384kHz)
  • Roon Tested
Power Consumption - Normal < 0.5 Watts
Power Consumption - Network Wakeup < 2 Watts
Dimensions (WxHxD) 17" x 5 7/8" x 16" (431mm x 144mm x 425mm)
Panel Height 3U, 5 1/4" (132.6mm)
Weight 38.87lbs (17.63kg)
