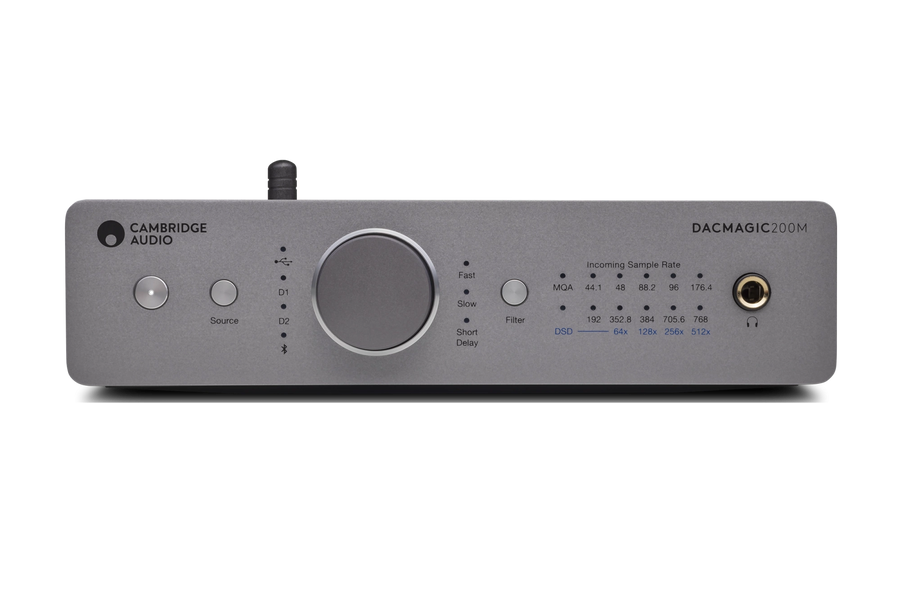

Cambridge Audio DAC Magic 200M DAC and Headphone Amplifier
Cambridge Audio DAC Magic 200M DAC and Headphone Amplifier Cambridge Audio DAC Magic 200M DAC and Headphone Amplifier
$769.99
  • Dual ESS SABRE ES9028Q2M Reference DACs – one per channel, handles digital audio up-to 24-bit/768kHz or DSD512
  • Digital Inputs: 2 pairs of optical & coaxial terminals, plus USB Audio – for audio sources incl. CD & Blu-ray players, laptops, games consoles etc.
  • Analogue Outputs: ¼” headphone, XLR & RCA connectors – for max. versatility
  • Bluetooth aptX input – wirelessly receive digital audio from smart devices
  • Supports MQA – for approved studio-quality digital audio
  • Compact half-width hi-fi unit – available in lunar grey or special edition black
DAC Dual ESS ES9028Q2M
Digital Filter (Selectable)
  • Fast
  • Slow
  • Short
Frequency Response 10Hz-50kHz
THD+N (1kHz 0dB) <0.0005%
Signal to Noise Ratio >115dB
Max Outlet Level (Fixed or variable, user selectable)
  • Unbalanced - 2.1V RMS
  • Balanced - 4.2V RMS
Inputs
  • USB-B (44.1-768kHz, DSD512, DoP256)
  • Coax (44.1-192kHz, DoP64)
  • Optical (44.1-96kHz, DoP64)
Outputs
  • Balanced (XLR)
  • Unbalanced (RCA)
MQA Full decoding (Core + Renderer)
Bluetooth v4.2 A2DP, SBC, and Aptx
Headphone Output
  • >300mW - 32Ohm
  • 65mW - 150Ohm
Recommended Headphone Impedance 10Ohm to 600Ohm
Dimenions (HxWxD) 2.0" (52mm) x 8.6" (215mm) x 7.6" (191mm)
Weight 2.6lbs (1.2kg)
