audio-technica
audio-technica Moving Magnet Cartridges

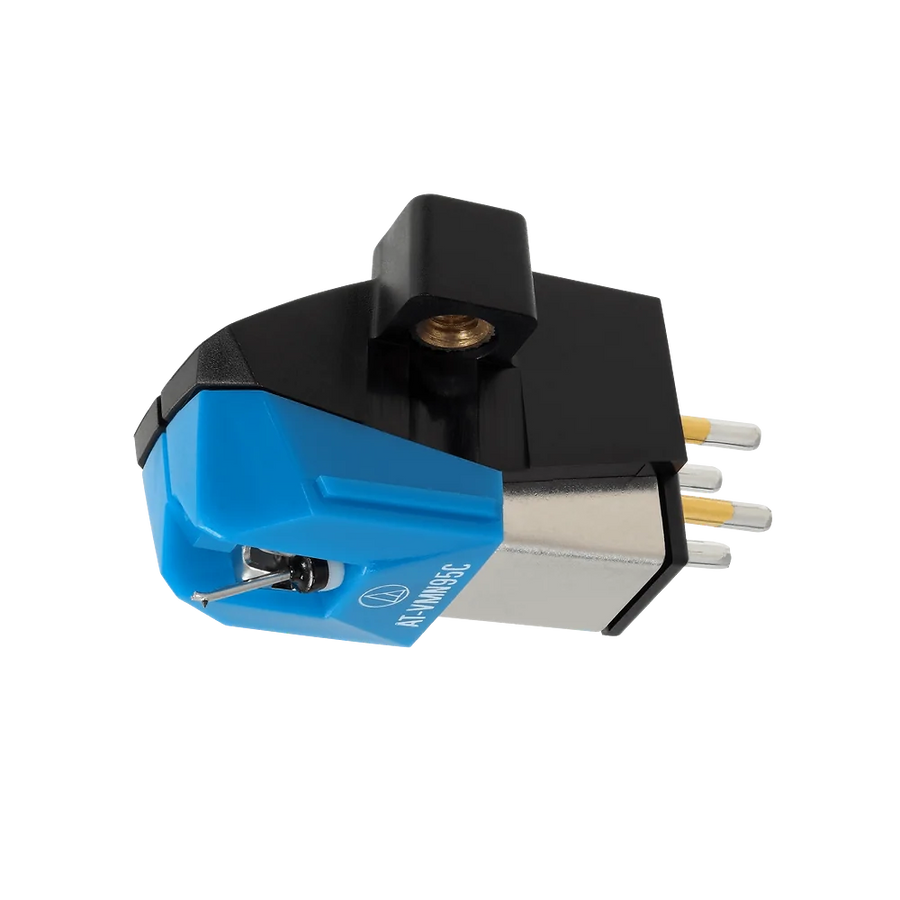

AT-VM95C
This VM95 Series cartridge with 0.6 mil conical stylus fits half-inch mount turntables. The cartridge’s special coil design delivers a powerful output level of 4.0 mV. It also offers excellent channel separation and low distortion for outstanding tonal quality. The durable, low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws – no nuts required. And since all VM95 Series share the same body, the stylus can be replaced with any of the six interchangeable AT-VMN95 replacement styli.
AT-VM95E
This VM95 Series cartridge with 0.3 x 0.7 mil elliptical stylus fits half-inch mount turntables. The cartridge’s special coil design delivers a powerful output level of 4.0 mV. It also offers excellent channel separation and low distortion for outstanding tonal quality. The durable, low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws – no nuts required. And since all VM95 Series share the same body, the stylus can be replaced with any of the six interchangeable AT-VMN95 replacement styli.
AT-VM510xCB
The AT-VMx series brings new warmth and realism to Audio-Technica’s premium dual moving magnet (MM) cartridge line, delivering an expansive soundstage that’s alive with musical detail.
Like all our MM cartridges, this updated design closely mirrors the cutter head used to make the vinyl master. It utilizes two magnets, positioned to match the left and right channels in the stereo record groove for outstanding channel separation and extended frequency response. But the new VMx series also introduces material and design changes to further refine the sound, offering responsive playback that is especially sensitive to the dynamism of musical expression.
| Model | AT-VM95C | AT-VM95E | AT-VM510xCB |
| Frequency Response | 20Hz-20kHz | 20Hz-22kHz | 20Hz-22kHz |
| Channel Separation (dB @ 1 kHz) | 18 | 20 | 24 |
| Vertical Tracking Angle | 23° | 23° | 20° |
| Vertical Tracking Force (2.0g standard) | 1.8g - 2.2g | 1.8g - 2.2g | 1.8g - 2.2g |
| Stylus Construction | Bonded round shank | Bonded round shank | |
| Stylus Shape | 0.6 mil conical | 0.3 x 0.7 mil elliptical | |
| Cantilever | Aluminum pipe | Aluminum pipe | Aluminum pipe |
| Mounting | Half-inch | Half-inch | |
| Weight | 6.1g | 6.1g | 7.2g |
| Replacement Stylus | AT-VMN95C | AT-VMN95E | AT-VMN10xCB |
| Stylus Size | 0.6 mil | 0.3 x 0.7 mil | |
| Type | VM Stereo Dual Magnet | VM Stereo Dual Magnet |
