ESV 60 Equipment Rack
$1,350.00

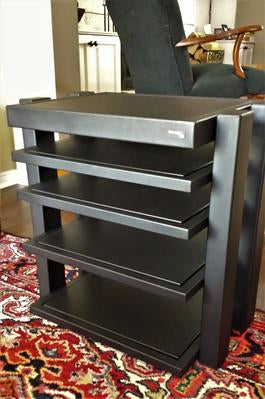

The Target Audio ESV 60 Equipment Rack is built for industrial strength and rigidity. Constructed from heavy wall tubular CRS with Class 12.9 bolts, the frame is cross braced welded and coated in durable black matte powder paint. The shelf frame is 0.500" dense laminated MDF, encapsulated with a UV stable and washable plastic laminate, so it won't fade or stain over time.

The ESV60 is a heavy-duty equipment rack, designed to provide stability and support. It comes with three standard shelves, and can accommodate components up to 20'' wide and 16" deep. Maximum weight capacity is 150lbs for the bottom shelf, and 75lbs for the other shelves. An optimal configuration places the heaviest items in the lower shelf for maximum performance.

Call the store for extra configuration options.

CS Shelves - $259 Each
CS Shelf Frame and MDF Shelf Insert

IS Shelves - $399 Each
Special Heavy Isolation Shelf for ESV Racks. Steel frame is heavier, MDF insert is thicker and is supported by 4 small isolation spikes. Can be used anywere in the rack.

Specifications
Height 24"
Included Shelves 3
Optional Shelves
  • Up to 2 CS Shelves
  • Up to 2 IS Shelves
  • Mix and Match Up to 2
Shelf Heights (From Bottom)
  • 2.875"
  • 3"
  • 5"
  • 7"
Shelf Weight Limits
  • 150lbs - Bottom Shelf
  • 75lbs - All Other Shelves
Unit Weight
  • 58lbs - 3 Shelf Configuration
  • 68lbs - 5 Shelf Configuration
Included
  • 4 Rack Risers
  • 3 CS Shelves
  • Screws
  • Instructions
  • Logo
  • He Wrench
Recommended Accessories
  • ESV-CB Caster Kit
  • ESV-SB Floor Spike Kit
