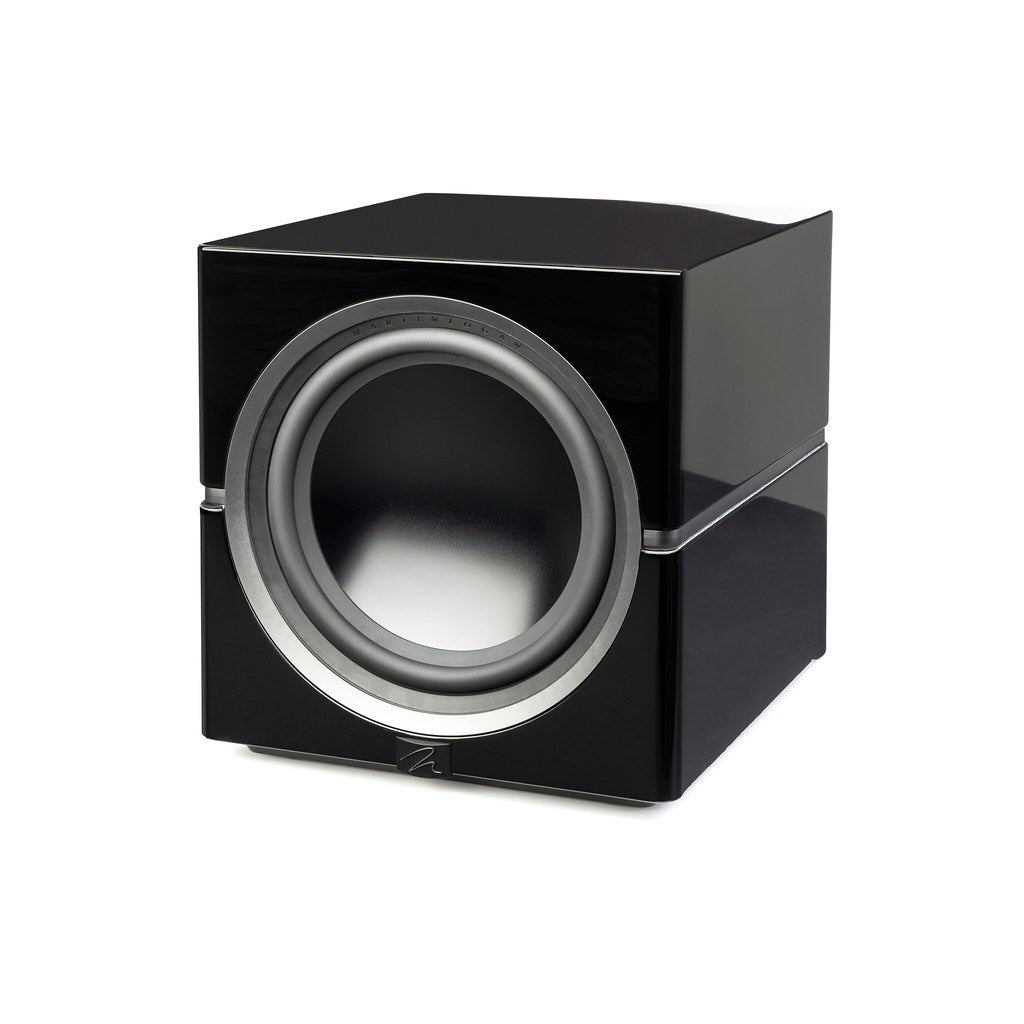

MartinLogan Dynamo 12 Subwoofer

As Dynamo™ 10’s larger, more powerful sibling, Dynamo 12 offers the same robust connectivity and extensive feature list but with more output capability and low frequency extension, all while maintaining a compact profile. Dynamo 12’s impressive “resume” includes a custom 12” aluminum woofer, a 1600W peak power amplifier, and a best-in-class 500MHz DSP Engine with 64-bit processing all housed in an expertly crafted 1” thick cabinet. With massive power and high precision on tap, Dynamo 12 also features a variety of connection options ranging from XLR to the built-in wireless option. Dynamo 12 also features MartinLogan’s powerful and intuitive control app for convenient setup and adjustment, as well as being compatible with the award-winning Anthem Room Correction (ARC®) system.

Contact the Store for Shipping Options

Digital Signal Processor	Ultra High-Resolution 500MHz Vojtko DSP Engine with 64bit processing
Frequency Response	22–120 Hz ±3 dB (Anechoic via LFE input)
Low Frequency Transducer	12” (25.4cm) high-excursion, anodized-aluminum cone in a stamped steel basket
Cabinet	Precision-crafted, sealed MDF enclosure featuring a robust 1-inch thick MDF woofer baffle
Amplifier	Magnitude® MT-1.6kW Amplifier with 1,600W peak (800W continuous)
Controls (Backplate)	Level: Interactive LED Backlit Knob Tone Sweep: Sweep Start and Pause (with status light) Power Mode: On, 12v Trigger, Auto Wireless Audio Pairing Button (for included MartinLogan wireless transmitter)
Inputs	Line Level: Left, Right/LFE, XLR LFE Speaker Level: Left and Right (Requires Banana Plugs)
Weight	61.5lbs (27.9kg)
Dimensions (HxWxD)	16 3/4" (42.4cm) x 15 3/4" (39.9cm) x 15 3/4" (39.9cm)
