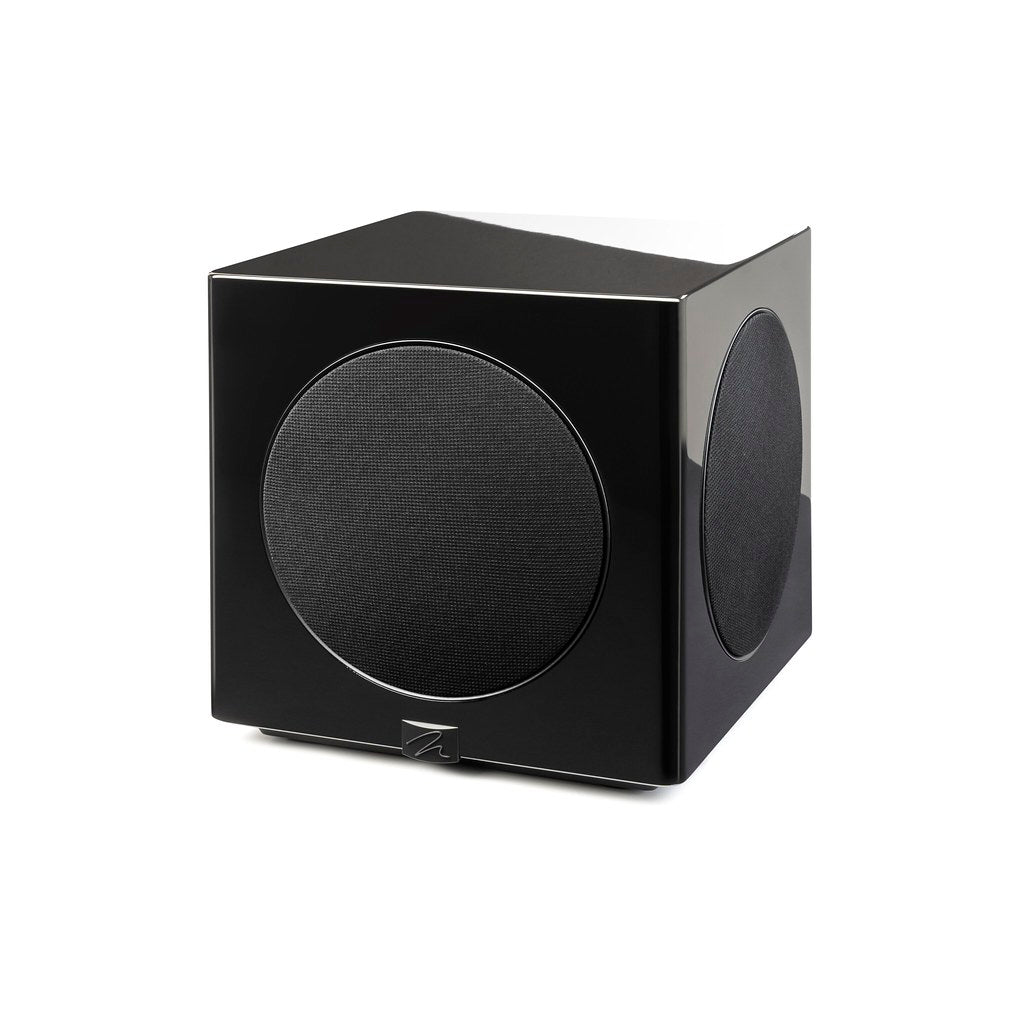

MartinLogan Abyss 10 Subwoofer

Like its smaller sibling, Abyss 8, the Abyss 10 provides deceptively strong, yet detailed sound thanks to its 10” Hybrid Woofer System. Abyss 10 utilizes a pair of 10” passive radiators to bolster its active 10” woofer, resulting in even higher levels of output capability and deeper low frequency extension. This woofer system is driven by powerful amplification, and a precision DSP engine, all contained inside an elegant 1” thick cabinet. To complement the impressive output and speed of Abyss 10, MartinLogan engineers included a variety of connections ranging from XLR to the built-in wireless option. Abyss 10 also features MartinLogan’s powerful and intuitive control app for convenient setup and adjustment, as well as being compatible with the award-winning Anthem Room Correction (ARC®) system.

Contact the Store for Shipping Options

Digital Signal Processor	Ultra High-Resolution 500MHz Vojtko DSP Engine with 64bit processing
Frequency Response	22–120 Hz ±3 dB (Anechoic via LFE input)
Low Frequency Transducer	Triple 10" (25.4cm) Hybrid Woofer System consisting of a single high-excursion, anodized-aluminum cone in a stamped steel basket with dual anodized-aluminum cone passive radiators
Cabinet	Precision-crafted, sealed MDF enclosure featuring a robust 1-inch thick MDF woofer baffle
Amplifier	Magnitude MT-1.6kW Amplifier with 1,600W peak (800W continuous)
Controls (Backplate)	Level: Interactive LED Backlit Knob Tone Sweep: Sweep Start and Pause (with status light) Power Mode: On, 12v Trigger, Auto Wireless Audio Pairing Button (for included MartinLogan wireless transmitter)
Inputs	Line Level: Left, Right/LFE, XLR LFE Speaker Level: Left and Right (Requires Banana Plugs)
Weight	55.6 lbs (25.2 kg)
Dimensions (HxWxD)	15.4" x 15" x 15" (39.1cm x 38cm x 38cm)
