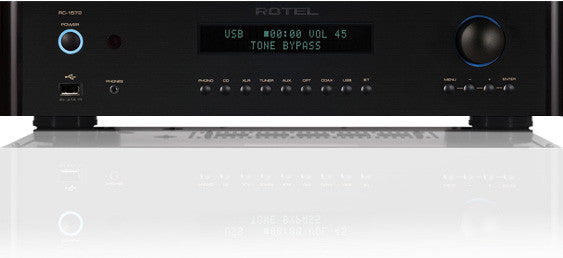

Rotel RC-1572MKII Stereo Pre-Amplifier

Color:

$1,439.00 $1,699.00

Rotel's RC-1572MKII Stereo Pre-Amplifier offers a high-end experience at an affordable price. Enjoy your favorite analog and digital sources in remarkable sound quality with an expansive soundstage. Delight in crisp clarity and captivating naturalness.

Power Supply	AB / Custom Designed Toroidal Transformer
Total Harmonic Distortion	< 0.004%
Analog Inputs	1x XLR (Balanced) 3x RCA (Unbalanced) 1x RCA Phono (Unbalanced, MM)
Digital Inputs	2x Optical 2x Coaxial Bluetooth with AptX PC-USB Front USB (iOS Devices Only)
Outputs	1x XLR (Unbalanced) 1x RCA (Unbalanced) 2x RCA (Mono Sub Out) 1x 3.5mm Headphone Jack (Front)
DAC (Digital to Analog Converter)	Texas Instruments Premium 32-bit / 384kHz
Frequency Response - Phono Input	20-20kHz (+0.3dB, -0.2dB)
Frequency Response - Line Level Inputs RCA	10-100kHz (+0dB, -0.2dB)
Frequency Response - Line Level Inputs XLR	10-100kHz (+0dB, -0.2dB)
Frequency Response - Digital Inputs	20-20kHz (+/- 0.5dB, Max)
Input Sensitivity / Impedance - Phono Input MM	3mV / 47k Ohms
Input Sensitivity / Impedance - Line Level Inputs RCA	200mV / 100k Ohms
Input Sensitivity / Impedance - Line Level Inputs XLR	300mV / 100k Ohms
Input Sensitivity / Impedance - Digital Inputs	0dBfs / 75 Ohms
Preamp Output - Unbalanced RCA	1V
Preamp Output - Unbalanced XLR	2V
Signal to Noise Ratio - Phono Input (MM)	80dB
Signal to Noise Ratio - Line Level Imputs	103dB
Signal to Noise Ratio - Digital Inputs	100dB
Available Sample Rates - Coaxial / Optical	24-bit / 192kHz
Available Sample Rates - PC-USB	USB Class 1.0 (up to 24-bit 96kHz) USB Class 2.0 (up to 32-bit 384kHz) - Driver Installation Required MQA and MQA Studio (up to 24-bit 384kHz) Roon Tested
Power Consumption - Normal	< 0.5 Watts
Power Consumption - Network Wakeup	< 2 Watts
Dimensions (WxHxD)	17" x 3 7/8" x 13 1/4" (431mm x 99mm x 338mm)
Panel Height	2U, 3 1/2" (88.1mm)
Weight	18.5lbs (8.4kg)

Price includes shipping to most areas of Canada

View a PDF spec sheet from the Rotel website
