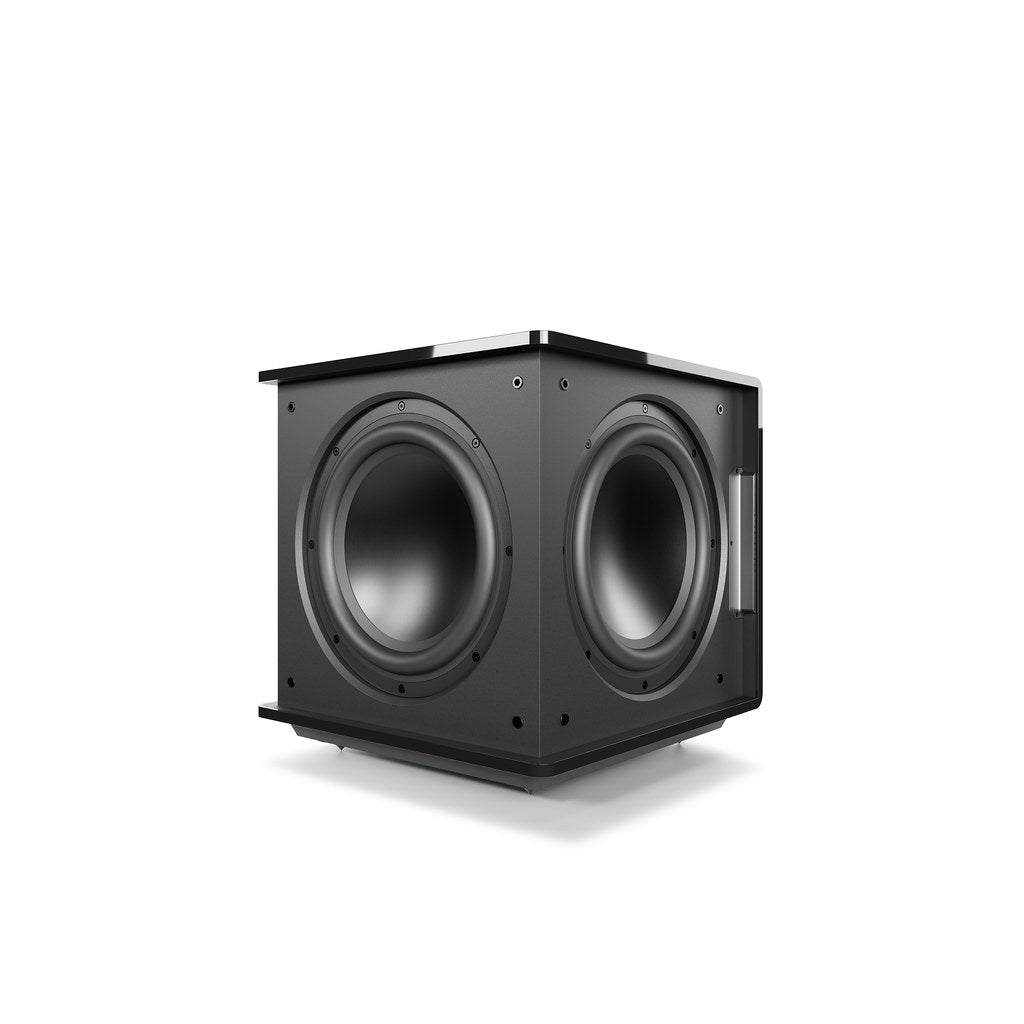

MartinLogan Grotto 12 Subwoofer
MartinLogan Grotto 12 Subwoofer MartinLogan Grotto 12 Subwoofer MartinLogan Grotto 12 Subwoofer
$2,599.99

The original Grotto subwoofer set a standard for clean, powerful bass in a compact, décor-friendly design. The all-new Grotto Series carries on that legacy with advanced amplification, precision drivers, and ARC Genesis Room Correction; delivering deep, controlled, and impactful bass from an elegantly understated form. With larger drivers and more power than its smaller siblings, the Abyss 8 and 10, the Grotto 12’s Hybrid Woofer System uses dual 12-inch passive radiators to enhance the low frequency output of its powerful, active 12-inch aluminum cone woofer. This high-output woofer system is driven by robust amplification and a best-in-class 64-bit DSP Engine to extract maximum performance. Grotto 12 offers a wide range of connectivity options including XLR, RCA, Speaker Level, and built-in wireless, plus the added convenience of the MartinLogan Subwoofer Control App. With support for the award-winning Anthem Room Correction(ARC) system, Grotto 12 can also be expertly tuned in a matter of minutes using the optional ARC Calibration Kit.

Digital Signal Processor Ultra High-Resolution 500MHz Vojtko DSP Engine with 64bit processing
Frequency Response 22–120 Hz ±3 dB (Anechoic via LFE input)
Low Frequency Transducer Triple 12" (25.4cm) Hybrid Woofer System consisting of 1x high-excursion, aluminum cone in a cast aluminum basket with 2x aluminum cone passive radiators for enhanced low frequency output.
Cabinet Sealed 1" thick MDF cabinet with dual center braces and reinforced MDF woofer baffles
Amplifier MartinLogan Magnitude MT-2kW Amplifier: 2000W peak (1000W continuous)
Controls (Backplate)
  • Level: Interactive LED Backlit Knob, Min-Max
  • Tone Sweep: Sweep Start and Pause (with status light)
  • Power Mode: On, 12v Trigger, Auto
  • Wireless Audio Pairing Button (for included MartinLogan wireless transmitter)
Controls (via Bluetooth)
  • Level: -40 to 12dB (Min-Max)
  • Low-Pass Filter (Frequency): 35–120Hz (1° Increments)
  • Low-Pass Filter (Order): Bypass, Third, Fourth
  • Phase: 0–180° (1° Increments)
  • Phase (Polarity): Normal, Inverted
  • Preset Listening Modes: Movie, Music, Night
  • 20–30Hz Level: ±10dB
  • Anthem Room Correction (ARC Genesis): On, Off
  • Tone Sweep (120-20Hz): On, Off, Pause (Frequency)
Inputs
  • Line Level: Left, Right, and LFE
  • XLR: LFE
  • Speaker Level: Left and Right (Requires Banana Plugs)
Finish Gloss Black
Weight 82.5 lbs
(37.4 kg)

Dimensions (HxWxD) 17.8" x 17.9" x 17.9"
(45.2cm x 45.4cm x 45.4cm)
