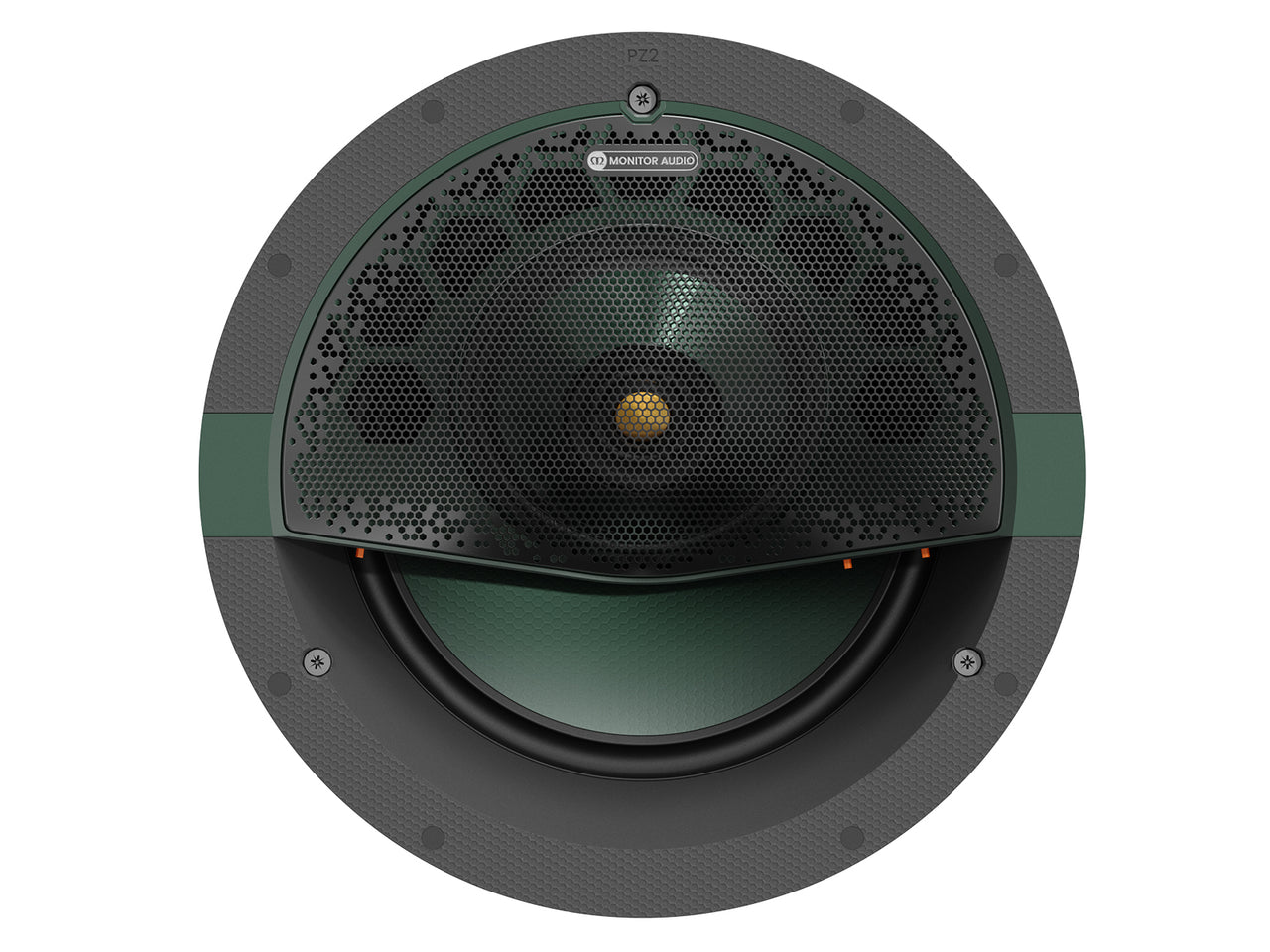

Monitor Audio Creator Series Tier 3 In-Ceiling Speakers (Each)
Monitor Audio Creator Series Tier 3 In-Ceiling Speakers (Each) Monitor Audio Creator Series Tier 3 In-Ceiling Speakers (Each) Monitor Audio Creator Series Tier 3 In-Ceiling Speakers (Each) Monitor Audio Creator Series Tier 3 In-Ceiling Speakers (Each) Monitor Audio Creator Series Tier 3 In-Ceiling Speakers (Each) Monitor Audio Creator Series Tier 3 In-Ceiling Speakers (Each) Monitor Audio Creator Series Tier 3 In-Ceiling Speakers (Each) Monitor Audio Creator Series Tier 3 In-Ceiling Speakers (Each)
$1,700.00

A range of high-performance in-ceiling speakers that boast engineering qualities similar to Tier 2, while providing superior acoustics and other advantages like boundary correction control and mid/high-frequency cut/boost options, plus the most advanced acoustic technologies.

  • 3-Way Arrangement
  • RDT III Bass Drivers
  • RST III Mid-Range Driver
  • IDC II Coaxial Mid/Tweeter Drivers with UD Waveguide II
  • Controlled Performance Model
  • Tri-Grip II
  • Quik-Link
Model C3L-A
 C3L-CP
 C3L
 C3M
Type 3-Way In-Ceiling 3-Way In-Ceiling
 3-Way In-Ceiling 3-Way In-Ceiling
Drivers
  • 1x 1" IDC II Tweeter
  • 1x 4" IDC II Mid-Range Driver
  • 1x 9" RDT III Bass Driver
  • 1x 1" IDC II Tweeter
  • 1x 4" IDC II Mid-Range Driver
  • 1x 9" RDT III Bass Driver
  • 1x 1" IDC II Tweeter
  • 1x 4" IDC II Mid-Range Driver
  • 1x 9" RDT III Bass Driver
  • 1x 1" IDC II Tweeter
  • 1x 4" IDC II Mid-Range Driver
  • 1x 7" RDT III Bass Driver
Frequency Response 45Hz - 35kHz (Installed, -6dB) 80Hz - 35kHz  (Installed, -6dB) 45Hz - 35kHz  (Installed, -6dB) 45Hz - 35kHz    (Installed, -6dB)
Sensitivity (2.83Vrms @ 1m) 89dB 89dB 89dB 87dB
Nominal Impedance 6 Ohms 6 Ohms 6 Ohms 6 Ohms
Minimum Impedance 4.6 Ohms @ 2kHz (20Hz to 20kHz) 4.9 Ohms @ 2kHz (20Hz to 20kHz) 4.8 Ohms @ 2kHz (20Hz to 20kHz)
 4.8 Ohms @ 2kHz (20Hz to 20kHz)
SPL 119dB 122dB 119dB 116dB
Power Handling 60W - 220W 45W - 180W 60W - 225W 40W - 180W
Crossover
  • LF/MF 700Hz
  • MF/HF 3000Hz
  • LF/MF 700Hz
  • MF/HF 3500Hz
  • LF/MF 700Hz
  • MF/HF 3500Hz
  • LF/MF 800Hz
  • MF/HF 3500Hz
Other Features
  • Corner Switch ON/OFF
  • HF Switch   -/0/+
  • MF Switch  -/0/+
  • Corner Switch ON/OFF
  • HF Switch    -/0/+
  • MF Switch  -/0/+
  • Sealed Cabinet
  • Corner Switch ON/OFF
  • HF Switch    -/0/+
  • MF Switch  -/0/+
  • Corner Switch ON/OFF
  • HF Switch     -/0/+
  • MF Switch  -/0/+
Mounting Depth
 6 3/16" (157mm)
 6 63/64" (177.5mm) 6 3/16" (157mm) 5 13/16" (148mm)
Cut-Out Hole Diameter 9 3/4" (248mm) 9 3/4" (248mm) 9 3/4" (248mm) 8 3/8" (212mm)
External Dimensions (HxWxD, Including Grille) 10 15/16" (278mm) x 10 15/16" (278mm) x 6 5/16" (161mm) 10 15/16" (278mm) x 10 15/16" (278mm) x 7 1/8" (181mm) 10 15/16" (278mm) x 10 15/16" (278mm) x 6 5/16" (161mm) 9 1/2" (242mm) x 9 1/2" (242mm) x 5 15/16" (151mm)
Weight 11lb 3oz (5.1kg) 12lb 10oz (5.7kg) 11lb (5kg) 7lb 8oz (3.4kg)
Pre-Construction Bracket CL-B CM-B CL-B CM-B
