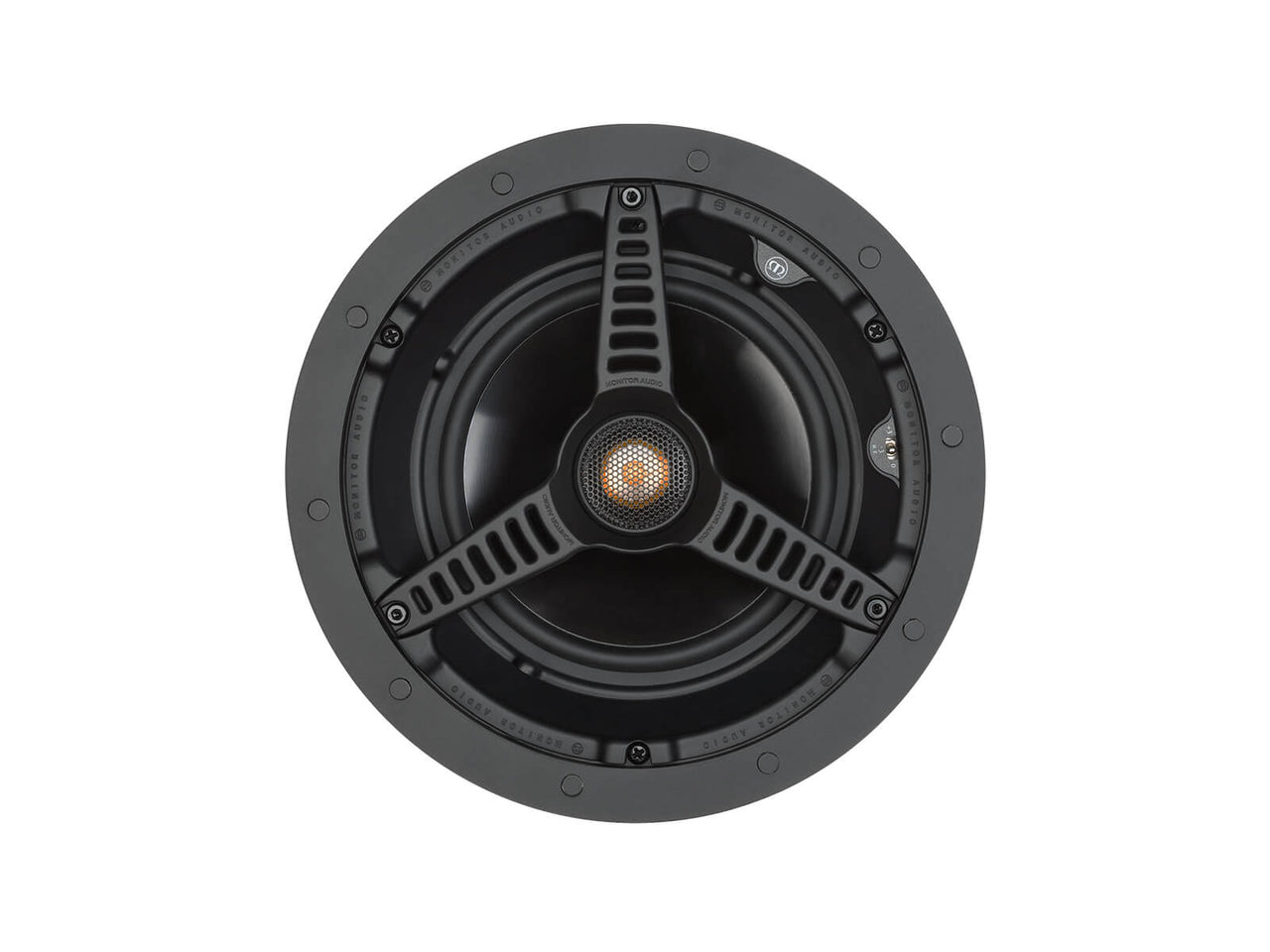

C160
C160 C180 Monitor Audio Basics Series In-Wall and In-Ceiling Speakers Monitor Audio Basics Series In-Wall and In-Ceiling Speakers
$299.99

Monitor Audio's entry-level Custom Install speaker range, with a broad selection of models tailored for specific uses.

  • 2-way Designs
  • MMP II drivers
  • Pivoting C-CAM Gold Dome Tweeters
  • High Frequency Attenuation Switch
  • Magnetic Trimless Grilles
Model C165 C180 W165 W180
Drivers
  • 1x 1" C-CAM Pivoting Gold Dome Tweeter
  • 6 1/2" MMP II Bass Driver
  • 1x 1" C-CAM Pivoting Gold Dome Tweeter
  • 8" MMP II Bass Driver
  • 1x 1" C-CAM Pivoting Gold Dome Tweeter
  • 6 1/2" MMP II Bass Driver
  • 1x 1" C-CAM Pivoting Gold Dome Tweeter
  • 8" MMP II Bass Driver
Frequency Response 60Hz - 25kHz 50Hz - 25kHz 60Hz - 25kHz 50Hz - 25kHz
Sensitivity (2.83Vrms @ 1m) 88.5dB 90dB 88.5dN 90dB
Nominal Impedance 6 Ohms 6 Ohms 6 Ohms 6 Ohms
SPL 107.4dB 111.65dB 107.4dB 111.6dB
Power Handling 20W - 65W 30W - 120W 20W - 65W 30W - 120W
Other Features HF Level Switch  -3dB/0dB/-3dB HF Level Switch HF Level Switch HF Level Switch
Mounting Depth 4 9/16" (116mm) 4 13/16" (122mm) 3 5/8" (*92mm) 1 15/16" (100mm)
Cut-Out Hole 8 1/4" (211mm) 9 3/4" (247mm) 13 1/6" (332mm) x 8 3/8" (213mm) 15 1/4" (387mm) x 9 3/16" (234mm)
External Dimensions (HxWxD, Including Grille) 9 13/16" (250mm) 11 1/4" (285mm) 14 9/16" (370mm) x 9 13/16" (250mm) 17 3/8" (441mm) x 11 5/16" (288mm)
Weight 4lb 4oz (1.92kg) 6lb (2.72kg) 4lb 14oz (2.21kg) 6lb 12oz (3.08kg)
Pre-Construction Bracket CM-B CL-B WB6 (Purple) WB8 (Green)
