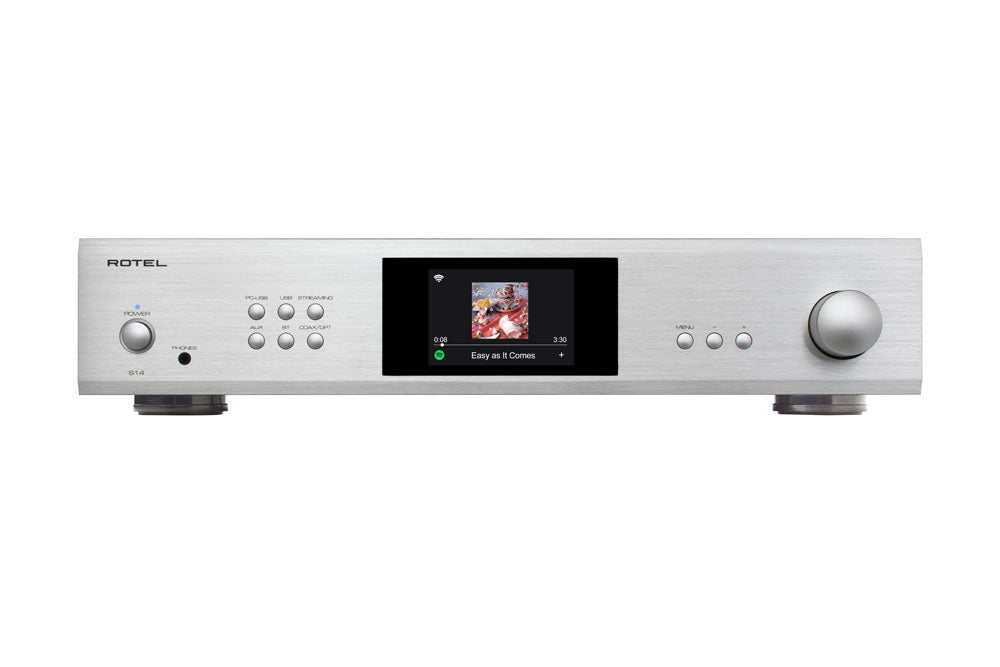

Rotel S14 Integrated Network Streaming AmplifierRotel
With the S14 Integrated Network Streaming Amplifier, users can stream music directly from popular streaming services including Spotify, Tidal, Podcasts and thousands of Internet Radio stations. AirPlay 2 and Google Cast are also supported as well as Coaxial, Optical, aptX HD Bluetooth, Analog RCA and PC-USB source inputs for legacy devices.
The all-in-one product streams music directly from popular music services, rendering the audio with precision, delivering 150 Watts of Class AB power at 4 Ohms.
Convenient and intuitive, the S14 supports both wired and dual-band wireless network connections for ultimate installation flexibility.
The front panel display renders full colour album artwork and includes title, track, and artist information from the selected audio streaming service.
- Maximum Power Output 150 watts/ch (4 ohms)
- Continuous Power Output 80 watts/ch (8 ohms)
- Total Harmonic Distortion < 0.04%
- Intermodulation Distortion < 0.03%(60 Hz : 7kHz, 4:1)
- Frequency ResponseLine Level Inputs 10 Hz - 100k Hz, 0 ± 0.5 dB
- Damping Factor 400(20 Hz - 20 kHz, 8 ohms)
- Input Sensitivity / ImpedanceLine Level Inputs 200 mV / 47k ohmsInput OverloadLine Level Inputs 4.5 VTone
- Controls - Bass / Treble ± 10 dB at 100 Hz / 10k HzSignal to Noise Ratio (IHF A-weighted)Line Level Inputs 100 dB
- Digital to Analog Converters: ESS
- Digital Section
Frequency Response 10 Hz - 90k Hz (0 ± 2 dB, Max)
- Signal to Noise Ratio (IHF A-weighted) 98 dB
- Input Sensitivity/Impedance -20 dBfs / 75 ohms
- Digital Inputs SPDIF LPCM(up to 24-bit / 192k Hz)PC-USB
- USB Audio Class 2.0(up to 24-bit / 384k Hz )**Driver installation required
- Support MQA and MQA Studio(up to 24-bit / 384k Hz )
- Power Requirements USA 120 V, 60 HzEC 230 V, 50 HzPower Consumption 280 watts
- Standby Power Consumption Normal < 0.5 wattsBTU (4 ohms, 1/8th power) 733 BTU/h
- Dimensions (W x H x D) 430 x 93 x 345 mm17 x 3 5/8 x 13 1/2 insFront Panel Height 80 mm / 3 1/8 ins
- Weight (net) 9.15 kg, 20.17 lbs.
- Finish Silver and Black
Our price includes shipping to many areas of Canada.
View a PDF specification sheet from Rotel with more details.
