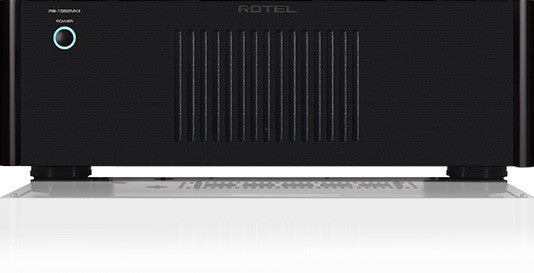

Rotel RB-1582 MkII 200 Watt Stereo Power Amplifier

Rotel’s next largest stereo amplifier at 200 Watts per channel provides the massive current to drive the very largest Hi-Fi systems effortlessly. And like its smaller brother, the RB-1582 MkII has been designed to excel at resolving the subtle details in music as well as supplying the brawn required for extremely dynamic passages. It is able to achieve this difficult dual requirement because of the meticulous attention paid to circuit design and parts selection.

The RB-1582 MkII's steps up performance with an oversize toroidal transformer combined with a total of 60,000µF storage capacity in special Rotel “slit foil” capacitors to provide completely stable power to the output stage. Slit foil capacitors have the ability to charge and discharge extremely quickly, thereby ensuring signal fidelity during orchestral crescendos or repetitive kick-drum impacts, for example. Both left and right channel construction are laid out in a mono block design (after the toroidal transformer) and all grounding is terminated in a star pattern on a copper grounding plate to ensure low signal to noise. The output stage is a discrete design that consists of 10 high current bipolar transistors per channel. Input options consist of both balanced XLR and unbalanced RCA connectors.

Continuous Power Output
200 W/Ch (20-20kHz, <0.03%, 8 Ohms)
Amplifier Class AB / Custom Designed Toroidal Transformer
Total Harmonic Distortion <0.03% (20-20kHz, 8 Ohms)
Damping Factor 800 (20-20kHz, 8 Ohms)
Input Impedance (Unbalanced)
12k Ohms
Input Impedance (Balanced) 100k Ohms
Input Sensitivity (Unbalanced)
1.9 Volt
Input Sensitivity (Balanced) 3.0 Volt
Frequency Response 10Hz-100kHz (+/- 0.5dB)
Signal to Noise Ratio 116dB
Speaker Impedance
4 Ohms Minimum
Gain (Unbalanced)
26.5dB
Gain (Balanced) 22.5dB
Dimensions (WxHxD) 17" x 5 7/8" x 16" (431mm x 144mm x 407mm)
Panel Height 3U, 5 1/4" (132.6mm)
Weight 38.80lbs (17.6kg)


View a PDF Spec sheet from the Rotel website.
