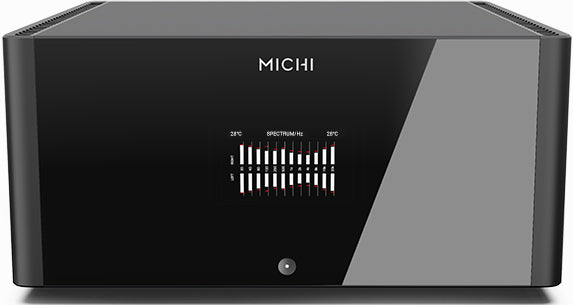

Rotel Michi S5 Stereo Power Amplifier
Rotel
Michi S5 Stereo Power Amplifier
The Michi S5 Stereo Amplifier delivers 500 watts per channel into 8 ohms loads with best in class audio performance. The dual monoblock design includes twin, oversized, in-house manufactured toroidal transformers for exceptional bass energy while maintaining control and precision of the finest detail all packaged in an elegant design.
| Continuous Power Output - 8 Ohms |
500 Watts / Channel |
| Continuous Power Output - 4 Ohms |
800 Watts / Channel |
| Amplifier Class | AB / Custom Designed Dual Toroidal Transformers |
| Total Harmonic Distortion | < 0.008% |
| Damping Factor | 350 (1kHz, 8 Ohms) |
| Input Impedance (Unbalanced) |
12.5k Ohms |
| Input Impedance (Balanced) | 100k Ohms |
| Input Sensitivity (Unbalanced) |
2.6 Volt |
| Input Sensitivity (Balanced) | 4.2 Volt |
| Frequency Response | 20-20kHz (+0dB, -0.15dB) |
| 10-100kHz (+0dB, -0.4dB) | |
| Gain (Unbalanced) |
28dB |
| Gain (Balanced) | 24dB |
| Signal to Noise Ratio | 120dB |
| Standby Power Consumption - Normal | < 0.5 Watts |
| Standby Power Consumption - Network Wakeup | < 2 Watts |
| Dimensions (WxHxD) | 19" x 9 3/8" x 18 1/4" (485mm x 238mm x 465mm) |
| Panel Height | 8 3/4" (220mm) |
| Weight | 132.1lbs (59.9kg) |
