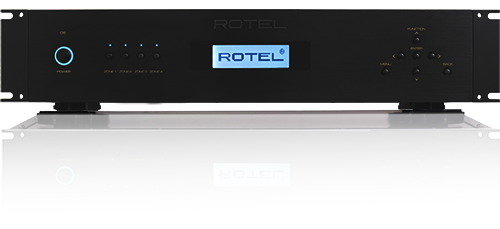

Rotel C8 8 Ch. Distribution Amplifier
Rotel
C8 8 Ch. Distribution Amplifier
Special Order - Available in October 2022
Performance meets efficiency in Rotel’s C8 Class AB Custom Installation Amplifier, driving 8- channels of premium audio at 70 Watts per channel, or bridged at 140 Watts into 4-ohm loads.
The C8 includes 4 Analog inputs matrixed to all Zones. Front panel display and controls provide source and independent volume, bass and treble settings. The custom 2U height requires no top or bottom clearance when rack mounting.
| Continuous Power Output - 8 Ohms |
8 x 50 W/Ch |
| Maximum Power Output - 4 Ohms | 8 x 70 W/Ch |
| Amplifier Class | AB / Custom Designed Toroidal Transformer |
| Inputs (Available through Matrix-Switching to All Zones) |
4x Analog RCA |
| Total Harmonic Distortion | < 0.1% |
| Damping Factor | 80 (20Hz-20kHz, 8 Ohms) |
| Input Impedance | 31K Ohms |
| Input Sensitivity | 0.3V |
| Frequency Response | 10Hz-100kHz, 0 +/- 0.5dB |
| Signal-to-Noise Ratio | 100dB |
| Standby Power Consumption - Normal |
< 0.5 Watts |
| Standby Power Consumption -Network Standby |
< 2 Watts |
| Dimensions (WxHxD) | 17" x 3 7/8" x 16 2/7" (430mm x 97mm x 414mm) |
| Panel Height | 2U, 3 1/2" (88.1mm) |
| Weight | 36.81lbs (16.7kg) |
